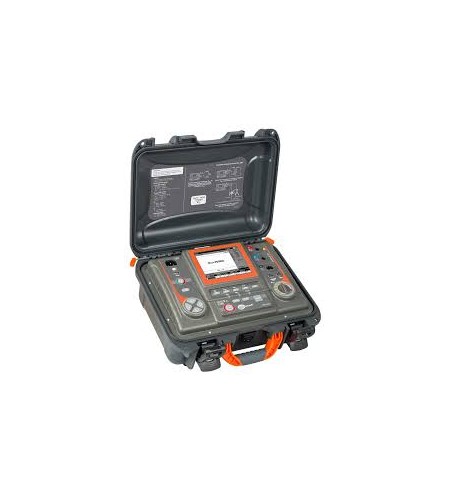

Sonel MIC-10K1 Programmable 10kV Insulation Resistance Tester
Perhatian!
Spesifikasi Sonel MIC-10K1 Programmable 10kV Insulation Resistance Tester
- Insulation resistance measurement of up to 40 Tera Ohms.
- Measurement voltage any in the range of: 50…10000 V (50...1000 V at 25 V and 1...10 kV at 50 V).
- Continuous indication of measured insulation resistance or leakage current.
- Automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement.
- Acoustic signaling of 5 seconds intervals to facilitate capturing time characteristics.
- Adjustable measuring time to 99'59'’
- Metered T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1-600 seconds.
- Polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement.
- Indication of actual test voltage during measurement.
- 1.2 mA, 3 mA and 5 mA test current.
- Insulation resistance measurement using two- or three-wire method.
- Measurements with test leads up to 20 metres.
- Protection against measuring live objects.
- Automatic measurement of multiple core cables with the additional AutoISO-5000 adapter (for MIC-10k1 max. voltage 5 kV).
- Measurement of capacitance during the measurement of RISO.
- Measurement of temperature (with additional probe - WASONT1).
- Step voltage insulation resistance measurement (SV).
- Dielectric Discharge calculation (DD).
- Location of damage (burnout).
- Digital filters function for measurements in high noise enviroment.
- Continuity measurement of protective connections and equipotential bonding in accordance with EN 61557-4 with current > 200 mA.
- Adjustable limits for measured resistance RISO and RCONT.
- Measurement of leakage current during insulation resistance testing.
- DC and AC voltage measurement in the range of 0...750 V.
- Drawing graphs on the display during measurement.
- Innovative memory with possibility of description of: measurement points, facilities, names of customers.
- Operating with mini Bluetooth keyboard (option).
- Graphic LCD 5,6'’ backlit.
- Keyboard backlit.
- Power supply from main power line or battery packs.
- Built-in fast charger.
