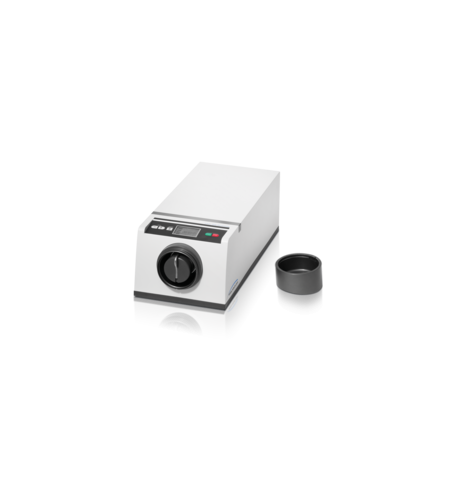

RETSCH XRD-Mill McCrone
Perhatian!
Spesifikasi RETSCH XRD-Mill McCrone
Product Advantages
- crystal lattice preserved during grinding operation
- very narrow and reproducible particle size distribution
- minimal cross contamination
- compact, bench-top sized model
- adjustable grinding power (4 steps)
- suitable for dry and wet grinding
- easy to clean
- almost maintenance-free
- quiet operation
Features
| Applications | grinding, mixing and triturating, dry and wet |
| Field of application | X-ray diffraction |
| Feed material | medium-hard, hard, brittle, fibrous |
| Material feed size* | < 0.5 mm |
| Final fineness* | < 1 µm |
| Speed at 50 Hz (60 Hz) | 1,000 - 1,500 min-1 in 4 steps |
| No. of grinding stations | 1 |
| Typical mean grinding time | 3 - 30 min |
| Dry grinding | yes |
| Wet grinding | yes |
| Cryogenic grinding | - |
| Material of grinding tools | agate, zirconium oxide, corundum |
| Grinding jar sizes | 125 ml |
| Setting of grinding time | digital, 00:00:10 to 99:59:50 |
| Drive | DC-Motor |
| Drive power | 50W |
| Electrical supply data | 220-240 V, 50/60 Hz |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | 100W |
| W x H x D closed | 205 x 155 x 520 mm |
| Net weight | ~19 kg |
| Standards | CE |
