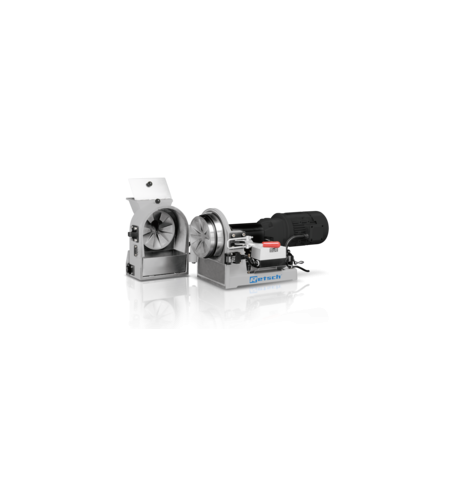

RETSCH Disc Mill DM 200
Perhatian!
Spesifikasi RETSCH Disc Mill DM 200
Product Advantages
- excellent crushing performance
- reproducible results due to accurate gap setting
- hinged grinding chamber for easy cleaning
- grinding discs with long working life
- wide range of materials for contamination free grinding
- connector for dust extraction
- can be operated together with Jaw Crusher BB 200
Features
| Applications | preliminary and fine grinding |
| Field of application | chemistry / plastics, construction materials, engineering / electronics, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, hard, brittle |
| Size reduction principle | pressure, friction |
| Material feed size* | < 20 mm |
| Final fineness* | < 100 µm |
| Speed at 50 Hz (60 Hz) | 440 min-1 (528 min-1) |
| Material of grinding tools | zirconium oxide, hardened steel, tungsten carbide, manganese steel |
| Gap width setting | continuous, 0.1 - 5 mm |
| Collector capacity | 2.5 l |
| Drive | 3-phase geared motor |
| Drive power | 1.5 kW |
| Electrical supply data | different voltages |
| Power connection | 3-phase |
| Protection code | IP 55 |
| W x H x D closed | 440 x 400 x 870 mm |
| Net weight | ~ 140 kg |
| Standards | CE |
