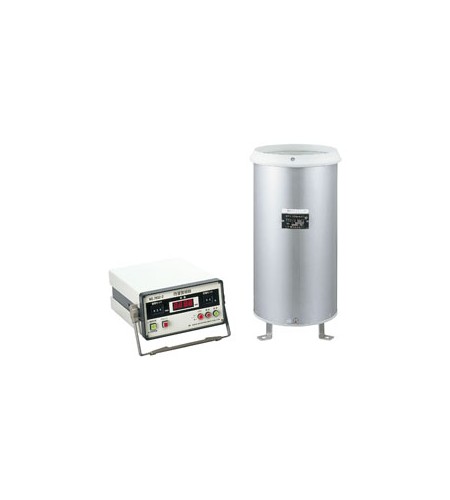

SK- SATO Rain Gauge with Alarm

Brand
SK - SATO
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
128 kali
Update Terakhir
15-06-2016
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi SK- SATO Rain Gauge with Alarm


SPECIFICATIONS OF SENSOR

Type of sensor Tipping bucket type rainfall sensor 1 contact point pulse per 0.5 mm of rainfall (non voltage)
Contact point capacity Max. working current: 1 ADC
Max. working voltage: 250 VDC
Contact point time More than 0.1 second
Dia. of rain collector Ø200 mm
Outline dimensions Ø200 x 450 (H) mm
Weight Approx. 3.5 kg

SPECIFICATIONS OF INDICATOR

Measuring range Digital display: 0 to 1000 mm (repeat) 4 digits, 0.5 mm step
Alarm Time setting Digital switch for rainfall time 2 digits, 1 to 99 minutes (selectable)
Alarm setting Digital switch for integrated rainfall depth, 3 digits, 1 to 999 mm (selectable)
Alarm output Relay contact output (normal open)
Contact point capacity: AC 110 V, DC 24 V 3A
Alarm switch ON/OFF switch for alarm
Buzzer switch ON/OFF switch for buzzer
Reset Reset the data of digital display by reset switch
Integration/Time Selectable by switch
Back up power supply 7 hours by build-in battery
Combined accuracy Below 20 mm of rainfall: Within ±0.5 mm
Over 20 mm of rainfall: Within ±3% of indicated value
Power requirements 100 VAC ±10% 50/60 Hz (other voltage is available)
Power consumption 100 mA max.
Outer dimensions 206(W) x 106 (H) x 305 (D) mm
Weight Approx. 4 kg
Panel cut size 204 (W) x 104 (H) mm
