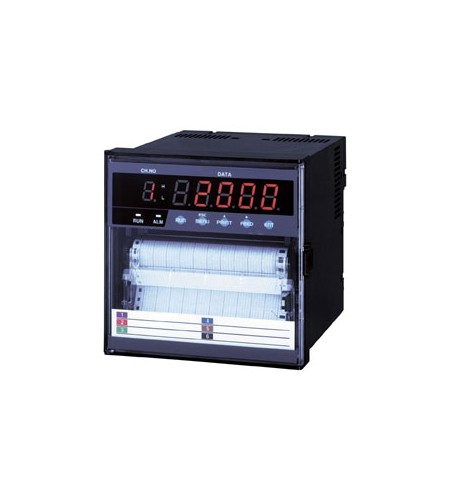

SK-SATO Hybrid recorder SKR-M10C Series

Brand

SK - SATO

Pengiriman

3 Hari Setelah Pembayaran

Lokasi

Jawa Barat - Bekasi - Bekasi Utara

Harga

Kontak Kami

Dilihat Sebanyak

97 kali

Update Terakhir

15-06-2016

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi SK-SATO Hybrid recorder SKR-M10C Series

Features

	-		Flat type; short depth. Dimensions: (W)144×(H)144×(D)150mm this device can be mounted on small panel.
	-		Dust-proof, water-proof Conformity to IP-65, this device is suitable for placing on harsh condition such as food, electric furnace
	-		Lightweight 1.5kg (6 dot recorder)
	-		Easy to read, large LED display Equipped with charactor height of 18 mm, large LED display
	-		RS-232C is equipped as standard features Communication function (RS-232C), multi-range
	-		Easy to operate By adopting easy 5-key operation, operation procedure is standardized
	-		Conformity standards UL, CSA, CE mark

Specifications

		Pen-type recorder	Dot-type recorder
Price		As for the quotation, please contact our sales.
		One-pen type No.8096-01	Six-dot type No.8096-06
		Two-pen type No.8096-02
Input	Measuring point	1, 2	6
	Measuring period	125ms	10s / all points
	Inputs	Direct voltage: ±10mV, 0 to 20mV, 0 to 50 mV, ±200mV, ±1V, ±10V, 0 to 5V Thermocouple: R,S,B,K,E,J,T,C,N,PR40-20,PL,Au-Fe,U,L RTD: Pt100, JPt100 Direct current: 4 to 20mA DC (shunt resistor: 250Ω)
Performance, characteristics	Accuracy rating	Less than ±0.3% of rdg±3digit: Digital display, printing
	Noise rejection ratio	Normal mode rejection ratio: more than 60dB(50/60 ±0.1Hz) Common mode rejection ratio: more than 140dB(50/60 ±0.1Hz)
	Insulation resistance	Each terminal to ground terminal; More than 0.5kV DC 20MΩ
	Withstand voltage	From power terminal to ground connection terminal; 1.5 kV AC, 1 minute From Input terminal to ground connection terminal; 0.5 kV AC, 1 minute
	Vibration resistance	10 to 60 Hz less than 1m/s²
	Impact resistance	Less than 2m/s²
Alarm	Output points	3 points (a contact, built-in option)	6 points (a contact, built-in option)
	Contact capacity	250V AC 3A Max (Resistance load), 30V DC 3A Max (Resistance load)
Communication function	Type	RS-232C (Standard), RS-485 (option)
Power requirement	Power requirement	100 to 240V AC (50/60Hz)
	Maximum power consumption	Less than 30VA (100V AC)	Less than 25VA (100V AC)
Architecture	Mounting	Embeded panel, Door:dust-proof, water-jets-proof (conformity to IEC529-IP65)
	Dimensions	144W×144H×150D(mm)
	Weight	Approx. 2.0 to 2.5 kg	Less than 1.5 kg
Operation ambient	Normal operating conditions	Temperature:0 to 50°C, Humidity:20 to 80 %RH
Printing	Recording method	Disposable felt pen	Wire dot (6 color ink ribbons)
	Printing method	Wire dot (1 color ink ribbon)
	95% step response	Less than 1.0s
	Recording period		Less than 1.0s
	Recording paper	Length: 16m, Width:114mm, Width(folded): 40mm
	Recording paper forwarding speed	From 5 to 12000 mm/h	From 0 to 1500 mm/h
	Recording color	1 pen: Red, 2 pen: Green, printing color: Purple	Purple,Red,Green,Blue,Brown,Black
