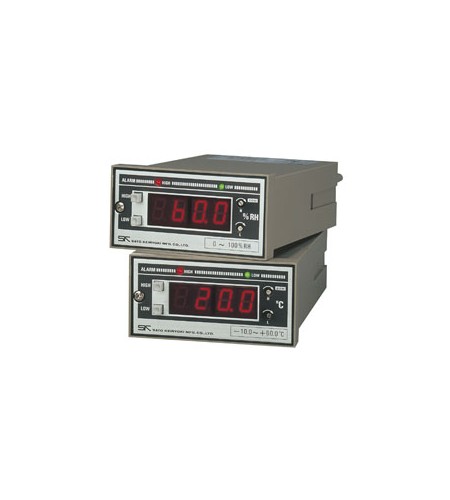

SK-SATO EDM Series Indicators with Upper and Lower Limit Alarm
Perhatian!
Spesifikasi SK-SATO EDM Series Indicators with Upper and Lower Limit Alarm
|
 |
| Input | 7-segment red LED (height 14 mm) | |
| Indicator | Display | 7 segment LED 31/2 digits |
| Accuracy | F.S x 0.5% 1 digit | |
| Setting range | Setting range | |
| Output contact capacity | 250 VAC 1A (resistance load) | |
| Transmission output (option) |
DC Voltage: 0 to 10 mV, 1 to 5V DC Current: 4 to 20 mA |
|
| Load impedance | DC Voltage more than 10 kohm DC Current less than 600 ohm |
|
| Power requirements | 100/110, 200/220, 115/220, 120/240 VAC | |
| Permissible power requirement fluctuation | ±10% of rated voltage | |
| Ambient | 0 to 50°C less than 85%RH | |
| Power consumption | 5 VA | |
| Outer dimensions | 96 (W) x 48 (H) x 145 (D) mm | |
| Weight | 650 g | |
| Code No. | Scale range | Unit | Input | Code No. | Scale range | Unit | Input |
| 03 | 0 to 199.9 | °C | J (IC) | 80 | -99.9 to 99.9 | °C | Pt100TΩ |
| 06 | 0 to 599 | °C | J (IC) | 82 | -49.9 to 49.9 | °C | Pt100Ω |
| 08 | 0 to 199.9 | °C | K (CA) | 83 | 0 to 49.9 | °C | Pt100Ω |
| 11 | 0 to 599 | °C | K (CA) | 86 | 0 to 199.9 | °C | Pt100Ω |
| 14 | 0 to 1,199 | °C | K (CA) | 88 | 0 to 299 | °C | Pt100Ω |
| 16 | 0 to 1,599 | °C | R (PR13%) | 96 | -10 to 60 | °C | mV input |
| 18 | 0 to 1,599 | °C | S (PR10%) | 96 | 0 to 99.9 | %RH | mV input |
