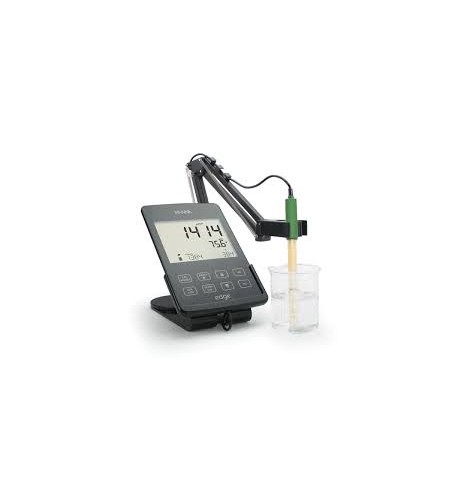

HANNA HI-2030 edge® Hybrid Multiparameter EC Meter

The smart, slim-line design means Edge can be used as a hand held, wall mount or bench top meter. Combined with sophisticated technology, it delivers fast accurate results with laboratory grade precision whichever format you choose to use.

Cutting-edge design, capacitive touch keypad and an intuitive user interface are just some of the attributes that make this meter stand out.

EC is measured through a unique digital electrode. Connected via an easy plug-in 3.5mm connector, this smart electrode enables Edge to automatically recognise and store sensor type, ID and calibration information.

Programmed for basic and advanced modes, Edge offers simplified screen features for routine measurements or detailed data display. It warns users if the electrode is not clean or if buffers are contaminated during calibration using the exclusive Hanna CAL-CHECK feature.

Key features

• capacitive touch keypad
• large 140mm LCD display with clear full text readout
• digital smart electrode enable edge to automatically recognise and store sensor type, ID and calibration information
• range: 0.00 to 29.99 uS/cm; 30.0 to 299.9 uS/cm; 300 to 2999 uS/cm
• resolution: 0.01 uS/cm; 0.1 uS./cm; 1 uS/cm
• accuracy: +/- 1% of reading
• slim, lightweight design means Edge can be hand-held, wall-mounted or used as a bench meter

Main benefits

• calibration: automatic with 7 standard buffers and 2 custom buffers
• programmed for basic and advanced modes
• Hanna CAL-CHECK warns if electrode is not clean or buffers are contaminated
• PC interface via micro USB
• data download onto USB stick via standard USB
• GLP data automatically transferred

• Range	EC	0.00 to 29.99 uS/cm; 30.0 to 299.9 uS/cm; 300 to 2999 uS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm (absolute EC)
  Range	TDS	0.00 to 14.99 mg/L (ppm); 15.0 to 149.9 mg/L (ppm); 150 to 1499 mg/L (ppm); 1.50 to 14.99 g/L; 15.0 to 100.0 g/L; up to 400.0 g/L (absolute TDS)
  Range	Salinity	0.0 to 400.0 % NaCl; 0.01 to 42.00 PSU; 0.0 to 80.0 g/L
  Resolution	EC	0.01 uS/cm; 0.1 uS/cm; 1 uS/cm; 0.01 mS/cm; 0.1 mS/cm
  Resolution	TDS	0.01 ppm; 0.1 ppm; 1 PPM; 0.01 g/L; 0.1 g/L
  Resolution	Salinity	0.1 % NaCl; 0.01 PSU; 0.1 g/L
  Accuracy	EC	±1% of reading
  Accuracy	TDS	±1% of reading
  Accuracy	Salinity	±1% of reading
  EC Calibration		1 point offset calibration; 1 point slope calibration in EC standard 84 uS/cm, 1413 uS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 118.8 mS/cm
  TDS Calibration		through EC calibration
  Salinity Calibration		1 point with HI-7037L 100% NaCl sea water standard
  Temperature Compensation		noTC, ATC (-20.0 to 120.0 °C)
  Electrode		HI 763100 Conductivity probe (included)
  Environment		0 to 50°C (32 to 122°F); RH max 95%
  Dimensions		202 x 140 x 12.7 mm
  Weight		250 g
