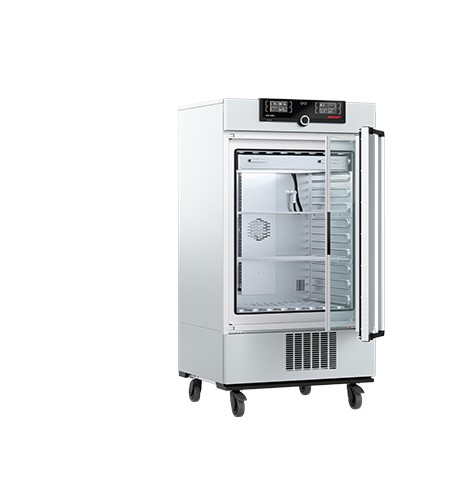

MEMMERT Climate chamber ICH260C
Gambar Produk
MEMMERT Climate chamber ICH260C
Brand
MEMMERT
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
153 kali
Update Terakhir
06-06-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi MEMMERT Climate chamber ICH260C
Properties
Control of standard components
| ControlCOCKPIT | adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays |
|---|---|
| Temperature | 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value |
| Humidity | humidity supply with distilled water from external tank by self-priming pump |
| Humidity | humidity supply with distilled water from external tank by self-priming pump |
| Humidity | humidification by hot steam generator |
| Humidity | active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % |
| CO2 | digital electronic CO2-control with automatic zeroing (infrared measuring system) - adjustment range 0-20 % - resolution 0.1 % |
| CO2 | CO2-supply via sterile filter |
| CO2 | intrinsic adjustment of altitude above sea level |
| CO2 | CO2-supply interruption upon door opening |
| Timer | Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Heating concept
| no drying-up of the load caused by the cooling device due to separation of thermal jacket from interior | |
|---|---|
| energy-saving use of CFC-free cooling/heating system (refrigerant R134a) | |
| highly efficient automatic defrosting system | |
| air jacket heating system for gentle all-around heating |
Standard equipment
| Door | inner glass doors |
|---|---|
| Door | fully insulated stainless steel doors with 2-point locking (compression door lock) |
| Housing | rear zinc-plated steel |
| Internals | 2 stainless steel grids |
| Installation | on lockable castors |
Stainless steel interior
| Max. loading of chamber: | 200 kg |
|---|---|
| Dimensions W x H x D in mm | w(A) x h(B) x d(C): 640 x 800 x 500 mm |
| Volume | 256 l |
Textured stainless steel casing
| w(D) x h(E) x d(F): 824 x 1552 x 734 mm |
Electrical data
| Voltage Electrical load | 230 V, 50/60 Hz approx. 1350 W |
|---|---|
| Voltage Electrical load | 115 V, 50/60 Hz approx. 1350 W |
Packing/shipping data
| the appliances must be transported upright | |
|---|---|
| Customs tariff number | 8419 8998 |
| Country of origin | Federal Republic of Germany |
| WEEE-Reg.-No. | DE 66812464 |
| Dimensions approx incl. carton | B x H x T: 930 x 1760 x 930 mm |
| Net weight | approx. 160 kg |
| Gross weight carton | approx. 217 kg |
Temperature
| from +10°C up to +50°C | |
| resolution of display for setpoint and actual temperature values | 0.1°C |
|---|---|
Control technology
| Function SetpointWAIT | the process time does not start until the set temperature is reached |
|---|---|
| Language setting | German/English/Spanish/French |
| Calibration | three freely selectable values each, temperature/humidity/CO2 |
| adjustable parameters | temperature (Celsius or Fahrenheit), fan speed, CO2, programme time, time zones, summertime/wintertime |
Ventilation
| Fan | forced air circulation in working chamber adjustable from 10 to 100 % in 10 % steps, fixed value 50 % when working with CO2 |
|---|
Communication
| Documentation | programme stored in case of power failure |
|---|---|
| Programming | AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety
| Temperature control | mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature |
|---|---|
| Temperature control | over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display |
| AutoSAFETY | additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature |
| Autodiagnostic system | integral fault diagnostics for temperature, CO2 and humidity control |
| Alarm | visual and acoustic |
