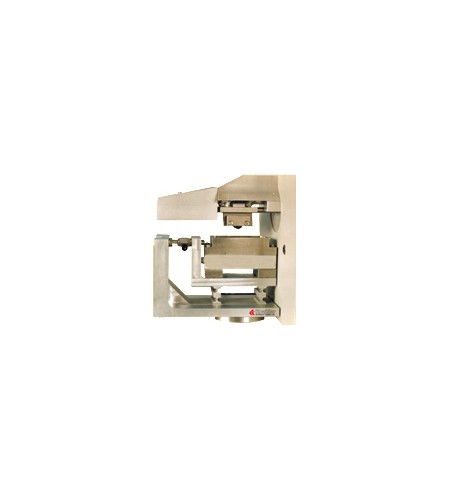

KOEHLER K93400 Friction Tester
Perhatian!
Spesifikasi KOEHLER K93400 Friction Tester
• Requires only a few drops of fluid sample or small specimen size to test
• Measure frictional force with a piezoelectric force transducer
• Performs friction tests on a variety of lubricants, greases, cutting fluids, metals, composites, ceramics, polymers, and coatings
• Electronic control of stroke length, frequency, and temperature
• TriboDATA Acquisition Software included to record and graph test results
• Wear characteristics can also be evaluated using a profilometer
• HFRR configuration that correlates to ASTM D6079 and other custom configurations are available
Specifications
Normal Load: 5-50N
Frequency: 1-50Hz
Stroke: 0-10mm (1-10Hz)
0-5mm (10-20Hz)
0-2mm (20-50Hz)
Temperature Range: ambient to 100°C
Test Duration: 0.1-999 min
Included Accessories
Set of Weights
Test Specimen Holders
Ball Sample
Pin Sample
Set of Hands Tools
Electronic Controller
Fuses
Connecting and Signal Cables
TriboDATA Software
Calibration and Test Reports
Shipping Information
Shipping Weight: 264 lbs (120 kg)
Dimensions: 25 Cu. Ft.
