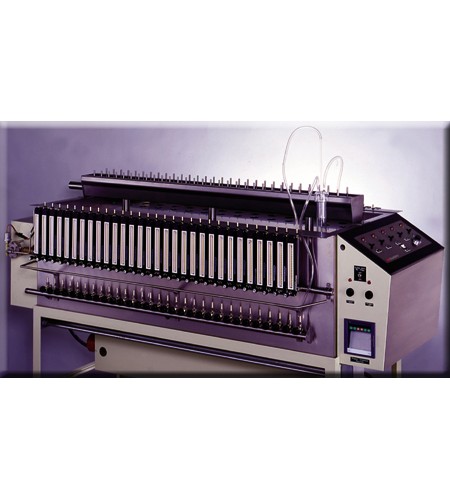

KOEHLER K12330 Oxidation Stability Apparatus, 30- & 60-Unit
Gambar Produk
KOEHLER K12330 Oxidation Stability Apparatus, 30- & 60-Unit
Brand
KOEHLER
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
120 kali
Update Terakhir
30-05-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi KOEHLER K12330 Oxidation Stability Apparatus, 30- & 60-Unit
Features and Benefits
• Conforming to ASTM and related test method specifications
• Convenient operation and servicing of thirty or sixty test cells
• Complete bath temperature, water level, air flow and condenser water systems
K12330 Oxidation Stability Apparatus, 30- & 60-Unit
Constant temperature water baths for high volume oxidation stability applications. Provides temperature control, metered air flow and condenser water supply controls for as many as thirty or sixty cells in a single system, eliminating the need for multiple water and electrical feeds and oxygen supply tanks. Microprocessor PID control provides quick temperature stabilization without overshoot, and the bath is protected by a redundant overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point. Display provides actual setpoint temperature values in °C/°F format. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. A 6 or 12kW heat exchanger with heavy duty magnetic drive circulation pump provides rapid and uniform heat transfer throughout the bath. Bath liquid depth is automatically maintained within ASTM specified tolerances by an electronic water level control system. Two banks of individually controlled flowmeters maintain the required oxygen flow rate to each test cell, and condenser water control valves for each cell are mounted on manifolds along the sides of the bath. A centrally mounted trough collects condenser waste water for convenient disposal or recirculation through an external cooling device. Bath interior is constructed of heavy gauge welded stainless steel. All components are easily accessible for servicing if required. Supplied with a sturdy finished angle-iron frame for floor standing installation. Order oxidation cell glassware and accessories separately.
Specifications
Conforms to the specifications of: ASTM D943, D2274, D2893*, D4310, D6158; ISO 4263, 12205; AOCS CD12-57*; DIN 51586, DIN 51587; NF M 07-047; NF T 60-150
*Modified versions of this equipment are available for ASTM D2893 “Oxidation Characteristics of Extreme Pressure Lubricating Oils” and AOCS CD12-57 “Fat Stability Active Oxygen Method.’’ Information will be furnished upon request.
Temperature Control Stability: ±0.1°C (±0.2°F)
Oxygen Flow Rate: 3L/h to each test cell, individually controlled
Bath Capacity:
30-place model: 60 gal (227L)
60-place model: 114 gal (432L)
Available option for 30- and 60-place Oxidation Baths–temperature/pressure recorder with built-in alarms for low pressure and over/under temperature. Please contact Koehler for specifications and ordering information.
Electrical Requirements
30-place model: 220-240V, 50/60Hz, Single Phase, 28A
60-place model: 220-240V, 50/60Hz, Single Phase, 54A
Other electrical configurations are available upon request.
Dimensions lxwxh,in.(cm)
30-place model: 43x55x52 (109x140x132)
60-place model: 43x78x52 (109x198x132)
Shipping Information
Shipping Weight:
30-place model: 892 Ibs (404.6kg)
60-place model: 995 lbs (451.3kg)
Dimensions:
30-place model: 94 Cu.ft.
60-place model: 148 Cu.ft.
• Conforming to ASTM and related test method specifications
• Convenient operation and servicing of thirty or sixty test cells
• Complete bath temperature, water level, air flow and condenser water systems
K12330 Oxidation Stability Apparatus, 30- & 60-Unit
Constant temperature water baths for high volume oxidation stability applications. Provides temperature control, metered air flow and condenser water supply controls for as many as thirty or sixty cells in a single system, eliminating the need for multiple water and electrical feeds and oxygen supply tanks. Microprocessor PID control provides quick temperature stabilization without overshoot, and the bath is protected by a redundant overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point. Display provides actual setpoint temperature values in °C/°F format. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. A 6 or 12kW heat exchanger with heavy duty magnetic drive circulation pump provides rapid and uniform heat transfer throughout the bath. Bath liquid depth is automatically maintained within ASTM specified tolerances by an electronic water level control system. Two banks of individually controlled flowmeters maintain the required oxygen flow rate to each test cell, and condenser water control valves for each cell are mounted on manifolds along the sides of the bath. A centrally mounted trough collects condenser waste water for convenient disposal or recirculation through an external cooling device. Bath interior is constructed of heavy gauge welded stainless steel. All components are easily accessible for servicing if required. Supplied with a sturdy finished angle-iron frame for floor standing installation. Order oxidation cell glassware and accessories separately.
Specifications
Conforms to the specifications of: ASTM D943, D2274, D2893*, D4310, D6158; ISO 4263, 12205; AOCS CD12-57*; DIN 51586, DIN 51587; NF M 07-047; NF T 60-150
*Modified versions of this equipment are available for ASTM D2893 “Oxidation Characteristics of Extreme Pressure Lubricating Oils” and AOCS CD12-57 “Fat Stability Active Oxygen Method.’’ Information will be furnished upon request.
Temperature Control Stability: ±0.1°C (±0.2°F)
Oxygen Flow Rate: 3L/h to each test cell, individually controlled
Bath Capacity:
30-place model: 60 gal (227L)
60-place model: 114 gal (432L)
Available option for 30- and 60-place Oxidation Baths–temperature/pressure recorder with built-in alarms for low pressure and over/under temperature. Please contact Koehler for specifications and ordering information.
Electrical Requirements
30-place model: 220-240V, 50/60Hz, Single Phase, 28A
60-place model: 220-240V, 50/60Hz, Single Phase, 54A
Other electrical configurations are available upon request.
Dimensions lxwxh,in.(cm)
30-place model: 43x55x52 (109x140x132)
60-place model: 43x78x52 (109x198x132)
Shipping Information
Shipping Weight:
30-place model: 892 Ibs (404.6kg)
60-place model: 995 lbs (451.3kg)
Dimensions:
30-place model: 94 Cu.ft.
60-place model: 148 Cu.ft.
