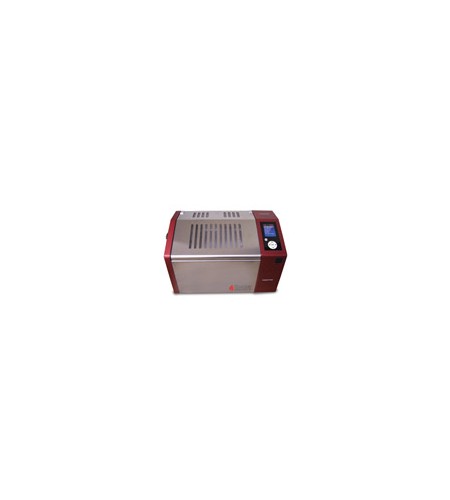

KOEHLER K16175 Dielectric Breakdown Voltage of Insulating Oils

• Conforms to ASTM D877, D1816 and related test specifications
• Output voltage: 75kV
• Features 2.8” ultra bright color display for optimal readability and mobility
• Built-in printer offers direct evaluation and reporting of results
• Internal battery, external 12V power supply
• Automatic Vernier function for electrode gap spacing
• Measurement of Silicone based oils
• Internal temperature measurement of oil sample
• Bluetooth PC Connectivity and USB Flashdrive Capability

Specifications
Conforms to the specifications of:
ASTM D877, D1816; BS EN 60156; CEI EN 60156; IEC 156; VDE 0370 Pt. 5
Output Voltage: Up to 75kV rms symmetrical
Voltage measurement accuracy: 0 - 75kV ±1kV
Voltage slew rate: 0.5 - 10kV/s
Resolution (displayed): 0.1kV
Power Supply: 85V - 264V, 47Hz - 63Hz, 12V external supply
Power consumption: 60VA
Internal rechargeable battery: 1 x 12V / 7.2Ah
Switch-off time on flashover: < 5†s
Measurement of oil temperature: 0 - 100°C / 32 - 212°F
Temperature Resolution: 1°C / 1.8°F
Display: 2.8” color (ultra bright)
Selectable Programs: ASTM D1816-04-1mm, ASTM D1816-04-2mm,
ASTM D877-02A, ASTM D877-02B, IEC 156/95
Customer-specific programs: Unlimited
PC Software: Included
Printer: Dot Matrix Hard Copy Output
Interface: Bluetooth
USB: USB memory stick
Operating Temperature: -5°C - 45°C (23°F - 113°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Relative Humidity: Non-condensing

Included Accessories
Calibration Sheet
AC Power Cable
User Manual

Dimensions WxHxD,in.(cm)
16.9x11x9.85 (43x28x25)
Net Weight: 48.5 lbs (22kg)

Shipping Information
Shipping Weight: 54.5 lbs (24.7kg)
Dimensions: 25x21x19in. (63.5x53.4x48.3cm)
