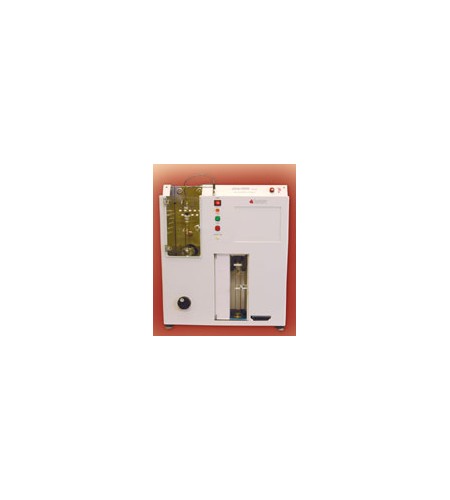

KOEHLER K45603 Automatic Distillation Analyzer 5000 Series

• Conforms to ASTM D86, D285, D4737 and related international specifications

• Pt-100 RTD probe with automatic temperature calibration system (°C or °F)

• Windows®-based software package for PC control with LIMS export capabilities

• Automatic determination of initial boiling point (IBP), final boiling point (FBP), dry point and barometric and residue corrections

• Diagnostic system continuously ensures proper unit performance and user safety

• Automatic temperature and volume calibration

• Programmable distillation rate (2-15mL/min)

• Ready for distillation groups 0 - 4

• Networking for up to 32 units

• Powerful CFC-free cooling & heating system

• Receiver chamber heating system to 60°C

• Precision level follower system with optical meniscus detector

• Integrated automatic fire extinguishing system with manual operation option


Specifications
Conforms to the specifications of:
ASTM D86, D285, D850, D1078, D4737; D189 Section 10; DIN 51751; ISO
3405; IP123; JIS J2254; NF M 07-002
Electrical requirements:
120V 50/60Hz 20A
230V 50/60Hz 10A
Temperature
Distillation Range: 0 to 450°C (±0.1°C accuracy)
Condenser: -5 to 60°C (±0.1°C accuracy); closed loop system
Receiver Chamber: 0 to 60°C (±0.1°C accuracy)
Distillation Parameters:
Distillation Rate: 2 to 15 mL/min in 0.1mL increments, user selectable
Receiver Volume: 0 to 100 mL (±0.01mL accuracy) by photoelectric
infrared detection of meniscus by level following system utilizing a precision stepper motor and a special calibrated glass receiver; automatic calibration of evaporated loss volume and automatic volume calibration system ensures highest accuracy
Barometric Pressure: Automatic barometric correction utility with
automatic sensor, range 550 to 900 mm Hg (±1mm Hg accuracy)
Dry Point Detection: Dry point detection board is included with standard
equipment and only requires a dry point sensor, 200 mL flask and PTFE plug for ASTM D850 and D1078 tests.
Environment: Operates at 0 to 45°C (113°F)
