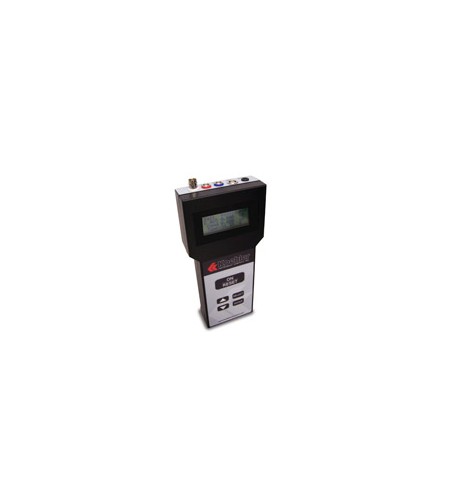

KOEHLER K23050 Salts in Crude Analyzer

• Conforms to ASTM D3230 test specifications
• Measures salt content, conductance, and temperature of crude oil
samples, and pH measurements of aqueous samples
• Portable for field or laboratory testing with up to 8 hours of continuous
operation from internal Ni-Cd rechargeable batteries
• 18-bit analog-to-digital converter for high precision
• 24Kb RAM dedicated for data storage (about 500 test results)
• Data can be uploaded in a comma delimited format to a PC with
easy to use Windows® 2000/XP/Vista – based software via an RS232
serial data port

Determines the salt content, conductance, and temperature of crude oil samples according to ASTM D3230 specifications. Utilizes the latest low-voltage, synchronous detection technology for conductivity measurements and a high-accuracy thermistor array to measure sample temperature. Automatically calculates salt concentration directly from acquired temperature and conductivity values. Measures conductivity over four ranges 0-2, 2-20, 20-200, and 200-1500 mS with automatic range selection. Self-calibration feature allows operator to adjust for any drift without re-entering standard temperature curves. Complete data storage of test results which is limited only by the hard drive capacity of external PC. Easy-to-read alpha-numeric display shows any four of the following parameters at one time as chosen by the operator: salts, conductance, conductance @ 25°C, pH, pH millivolts, temperature (°C or °F), internal and external battery voltages, date, time, logging ID, and ID increment value.

Dimensions lxwxh,in.(cm)
9x4.25x2.5 (23x10.8x6.5)
Net Weight: 2 lbs (1kg)

Shipping Information
Shipping Weight: 6 lbs (2.75kg)
Dimensions: 1.5 Cu. ft.
