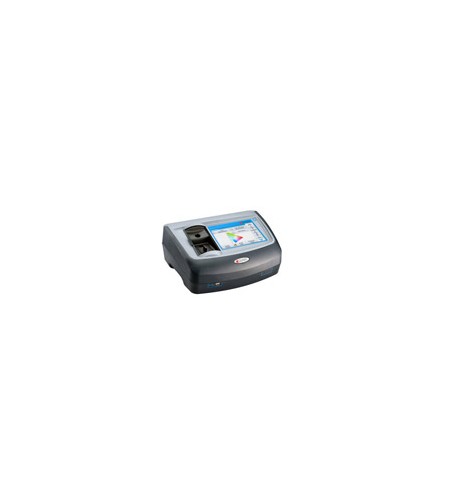

KOEHLER K13560 Automatic Colorimeter-AC500
Perhatian!
Spesifikasi KOEHLER K13560 Automatic Colorimeter-AC500
• Covers over 25 color scales
• Data storage for 100 color references, 1000 photometric values,
20 time scans, 20 wavelength scans and 3000 color readings
• USB- Ports: 2 x Type A, 1 x Type B and 1 EtherNet
• Automatic Cell Recognition
• Automatic Wavelength Calibration
• 16 Language Options
Specifications
Beam Height: 10 mm
Data Storage: 100 color references, 1000 photometric values,
3000 color readings, 20 time scans, 20 wavelength scans
Display: TFT WVGA Color Graphic Touch Screen
Display Size: 7 inch
Interface: 2 x USB Type A, 1 x USB Type B, 1 x Ethernet
Operating Temperature Range: 10 to 40°C
Optical Path Length: 10 - 50 mm
Optical System: 0° / 180° rectilinear
Photometric Accuracy: 0.005 Abs at 0 to 0.5 Abs, 1% at 0.5 to 2.0 Abs
Photometric Linearity: 1% with neutral glass at 546 nm,
< 0.5 % to 2 Abs with neutral glass at 546 nm
Photometric Measuring Range: ± 3.0 Abs
(wavelength range 340-900 nm)
Reproducibility: ± 0.2 % transmission
Scanning Speed: 8 nm/s (in steps of 1 nm)
Source Lamp: Tungsten Halogen Lamp
Spectral Bandwidth: 5 nm
Standard Illuminant: AC;D65
Standard Observer: 2°;10°
Storage Conditions: -40°C to 60°C
User Interface: English, French, German, Italian, Spanish, Czech,
Dutch, Greek, Polish, Slovene, Slovake, Russian, Turkish,
Chinese, Japanese, Korean
Wavelength Accuracy: ± 1.5 nm (wavelength range 340-900 nm)
Wavelength Calibration: automatic
Wavelength Range: 320 nm to 1100 nm
Wavelength Reproducibility: 0.1 nm
Wavelength Resolution: 1 nm,
Color Ranges
European, US and Chinese Pharmacopoeia (EP, USP, CP); DIN 6162 Iodine; ISO 6271 Hazen (Pt/Co, APHA, ASTM D1209, D5386); ISO 4630 Gardner (ASTM D1544, D6045, D6166); ISO 27608 Animal and Vegetable Fats and Oils; ASTM D156 Saybolt; ASTM D848 Acid Wash Test; ASTM D1925 Yellowness Index (ASTM D5386); AOCS Cc13e, BS 684 Ly/Lr; ADMI, ICUMSA, EBC, ASBC, Hess-Ives, Klett
Dimensions (H x W x D)
15.1x35.0x25.5cm (5.94x13.87x10.04in)
Weight: 4.20 kg (9.26lbs)
Electrical Requirements
100-240V / 50-60Hz
