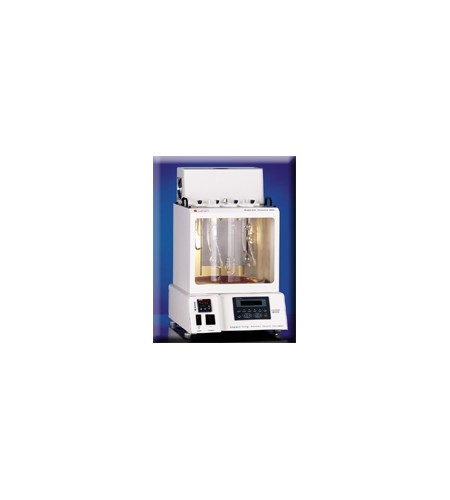

KOEHLER HKV3000 and HKV4000
Perhatian!
Spesifikasi KOEHLER HKV3000 and HKV4000
• Microprocessor control of temperature between ambient and 232°C (450°F), and down to –20°C (–4°F) with an external chiller
• Integrated digital timing for convenient measurement of sample efflux times
• HKV4000 model permits entry of viscometer constants for automatic calculation and display in viscosity units or seconds
• Dual digital displays show setpoint and actual bath temperature
• Selectable temperature scale - Fahrenheit or Celsius
• Integrated redundant over-temperature and low liquid level cut-off circuitry
• Conforms to ASTM D445, D2170 and related specifications for kinematic viscosity testing
Specifications
Conforms to the specifications of: ASTM D445, D2170, D6074, D6158; IP 71, 319; ISO 3104; DIN 51550; FTM 791-305; NF T 60-100
Temperature Range: ambient to 232°C (450°F); –20°C to 232°C (–4°F to 450°F) with an external chiller
Temperature Control Display: 0.1°C/°F resolution, calibrate to 0.01°C/0.01°F
Temperature Control Accuracy and Uniformity: Exceeds ASTM requirements throughout the operating range
Integrated Timing:
HKV3000 — Seven individual start/stop timers with displays to 0.01 seconds, accurate to within 0.01%
HKV4000 — Seven start/stop buttons with integrated LCD display, retention of viscometer constant, automatic calculation and display in viscosity units or seconds to 0.1 seconds, accurate to within 0.01%.
Communication: RS232 port included with HKV4000 (optional for HKV3000)
Viscometer Ports: Seven round 2" (51mm) ports
Bath Medium: Water or suitable heat transfer fluid
Bath Capacity: 5.8 gal (22L)
Bath Depth: 12" (31cm)
Electrical Requirements
115V, 50/60Hz, Single Phase, 12.7A
220-240V, 50/60Hz, Single Phase, 7.3A
Included Accessories
Port Covers, Delrin® (7)
Thermometer holder
Dimensions lxwxh,in.(cm)
20x15x24 (51x39x62)
Net Weight: 83 lbs (38kg)
