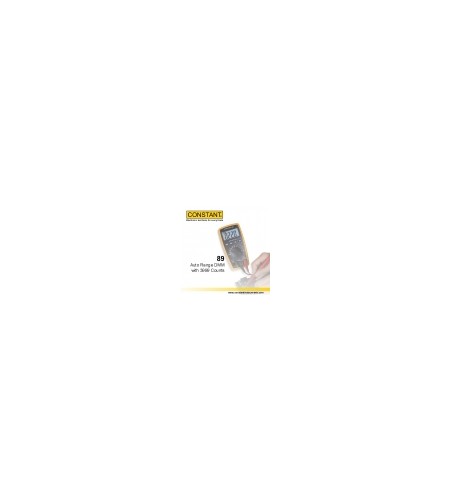

CONSTANT DIGITAL MULTIMETER 89

Brand
CONSTANT
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
116 kali
Update Terakhir
29-04-2016
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi CONSTANT DIGITAL MULTIMETER 89



Features

  • Autorange
  • Compact And Easy To Use
  • 3999 Counts
  • Frequency, duty cycle, capacitance, and temperature measurement



FUNCTION RANGE ACCURACY RESOLUTION
DC Voltage 400m/4/40/400V ±(0.5%+4d) 100µ/1m/10m/100mV
600V ±(1%+4d) 1V
AC Voltage 4/40/400V ±(0.8%+6d) 1m/10m/100mV
600V ±(1%+6d) 1V
DC Current 400µ/4m/40m/400mA ±(1%+10d) 0.1µ/1µ/10µ/100µA
10A ±(1.2%+10d) 10mA
AC Current 400µ/4m/40m/400mA ±(1.5%+10d) 0.1µ/1µ/10µ/100µA
10A ±(2.5%+15d) 10mA
Resistance 400Ω ±(0.8%+5d) 0.1Ω
4k/40k/400k/4MΩ ±(0.8%+4d) 1/10/100/1kΩ
40MΩ ±(1.2%+10d) 10kΩ
Diode Test Read approximately forward voltage drop of the diode
Continuity Built-in buzzer will sound if resistance is less than 50Ω
Capacity 4nF ±(5%+90d) 1pF
40n/400n/4µ/40µF ±(3.5%+8d) 10p/100p/1n/10nF
100µF ±(5%+8d) 100nF
Frequency 1/10/100/1k/10kHz ±(0.5%+10d) 0.001/0.01/0.1/1/10Hz
100k/1M/30MHz 100/1k/10kHz
Temperature (-20 ~ 1000)°C <400°C±(1%+5d) 1°C
≥400°C±(1.5%+15d)
Duty Cycle 0.1 ~ 99.9% For Your Reference 0.1V



Display : LCD 3999 counts
Indication : over range, low battery
Power : 2 x 1.5V (AAA size)
Size : H145 x W74 x D36mm
Weight : approx. 190g (including batteries)
Standard Accessories : instruction manual,  holster, soft pouch, test leads,
K-Thermocouple, batteries, warranty card
