CONSTANT DIGITAL MULTIMETER 700S

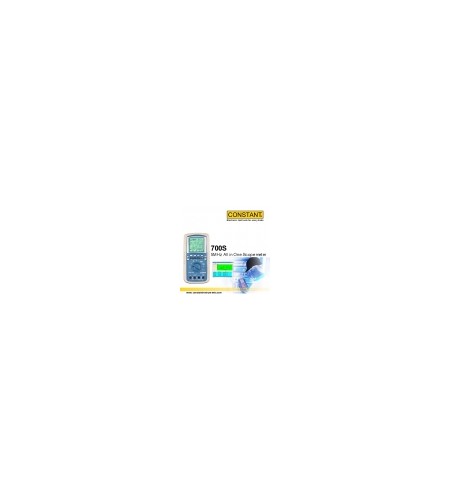

Gambar Produk
CONSTANT DIGITAL MULTIMETER 700S
Brand
CONSTANT
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Dilihat Sebanyak
118 kali
Update Terakhir
29-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi CONSTANT DIGITAL MULTIMETER 700S
Features
- Auto setting digital storage scope 5 MHz
- Frequency counter up to 1.3 GHz
- Function generator up to 5Mhz
- Logic analyzer
- Display 160 by 160 pixel graphic LCD (63mm x 63 mm)
- Measurement rate: 4 times/second for digital, 7 times/second for bar-graph
- Direct print capability through recommended thermal printer
- Auto power-off after 30 minutes, set up mode (enable/disable)
- RS 232 computer interface: 1200, 2400, 4800, 9600 bps baud rates, 8 bit data, 1 stop bit, none parity bit
- Store up to 15 screens either text or graph
- HELP key
- Automatic Testing System & Memory
- 4 directions cursor
- Set up for printer, parity, beeper, back light, baud rate, dBm reference, sleep mode
- User manual in SET UP
- Frequency counter displays hold mode and rpm
- Display ”OVER” with beeper sound for over range indication
|
DMM
|
||||
| AC Current (True RMS) (auto/manual) | ||||
|
Range
|
Resolution
|
Accuracy
|
Overload Protection |
|
|
50Hz ~ 1kHz
|
1kHz ~ 10kHz
|
|||
| 40mA | 10µA |
±(1.2% rdg + 10 dgts)
|
±(4.0% rdg + 10 dgts)
|
250V/500mA fused
|
| 400mA | 100µA | |||
| 4A | 1mA |
±(2.0% rdg + 10 dgts)
|
±(4.0% rdg + 10 dgts)
|
250V/20A fused
|
| 20A | 10mA | |||
| AC Voltage (True RMS) | ||||
|
Range
|
Resolution
|
Accuracy
|
||
|
50Hz ~ 1kHz
|
1kHz ~ 10kHz
|
10kHz ~ 30 KHz
|
||
| 400mV | 0.1mV |
±(1.0% rdg + 10 dgts)
|
±(5.0% rdg + 10 dgts)
|
ns
|
| 4V | 1mV |
±(0.75% rdg + 10 dgts)
|
±(2.0% rdg + 10 dgts)
|
±(5.0% rdg + 10 dgts)
|
| 40V | 10mV |
±(0.75% rdg + 10 dgts)
|
±(1.0% rdg + 10 dgts)
|
±(5.0% rdg + 10 dgts)
|
| 400V | 100mV |
±(0.75% rdg + 10 dgts)
|
±(1.0% rdg + 10 dgts)
|
±(5.0% rdg + 10 dgts)
|
| 700V | 1V |
±(1.0% rdg + 10 dgts)
|
ns
|
ns
|
| DC Current (auto / manual) | ||||
|
Range
|
Resolution
|
Accuracy
|
Overload Protection
|
|
| 40mA | 10µA |
±(1.2% rdg + 10 dgts)
|
250V/500mA fused
|
|
| 400mA | 100µA | |||
| 4A | 1mA |
±(1.5% rdg + 10 dgts)
|
250V/20A fused
|
|
| 20A | 10mA | |||
| DC Voltage (auto / manual) | ||||
|
Range
|
Resolution
|
Accuracy
|
Input Impedance
|
Overload Protection
|
| 400mV | 0.1mV |
±(0.3% + 5 digits)
|
10MΩ
|
1000V DC or AC peak with 10 seconds
|
| 4V | 1mV | |||
| 40V | 10mV | |||
| 400V | 100mV | |||
| 1000V | 1V | |||
| Resistance | ||||
|
Range
|
Resolution
|
Accuracy
|
Overload Protection
|
|
| 400Ω | 0.1Ω |
±(0.5% + 10 digits)
|
250V DC or AC peak within 10 seconds
|
|
| 4kΩ | 1Ω | |||
| 40kΩ | 10Ω | |||
| 400kΩ | 100Ω | |||
| 4MΩ | 1kΩ | |||
| 40MΩ | 10kΩ |
±(1.0% + 5 digits)
|
||
|
Capacitance
|
||||
|
Range
|
Resolution
|
Accuracy
|
||
|
40n/400n/ 4µ/40µ/ 100µF |
0.01n/0.1n/ 1n/10n/ 100nF |
±(2.0% + 10 digits)
|
||
| Diode Test | Resolution 1mV, Accuracy ±(2.0% rdg ± 5 dgts), Max 5V Open Circuit | |||
| Continuity | If continuity exists ≤ 60Ω, built in buzzer will sound | |||
| Display | 3¾ digits, 3999 counts | |||
|
Digital Storage Oscilloscope
|
|||
| Rising Time | Less than 15nS | ||
| Input Impedance | 1MΩ | ||
| Vertical | Number of Channel | 1 channel | |
| Sensitivity | 10mV/div - 200V/div (14 divisions) | ||
| Bandwith | DC to 5MHz | ||
| Sample Rate | 25 x 106 samples/s | ||
| Input Protection | 600Vpp | ||
| Horizontal | Sweep : 125ns ~ 2s/div (23 divisions), Mode : Auto | ||
| Trigger | Auto / Manual with slope | rising, falling | |
| Trigger Adjustable | 15% ~ 85% | ||
| Input Impedance | CH A 1MΩ; CH B 50MΩ | ||
| Maximum Input Voltage | CH A 100Vpp; CH B 5Vpp | ||
| Simultaneously display frequency, period, and rpm | |||
|
Frequency Counter
|
|||
| Range | 5Hz ~ 1.3GHz | ||
| Display | 8 digits | ||
| Period Measurement | 5Hz ~ 100MHz | ||
| Internal Gate Time | 0.1s, 1s, 10s | ||
| Input Measurement | CH A : 5Hz ~ 40MHz ; CH B : 40MHz ~ 1.3GHz | ||
| Input Sensitivity | 5Hz ~ 10MHz | 100mVrms | |
| 10MHz ~ 40MHz | 200mVrms | ||
| 40MHz ~ 80MHz | 300mVrms | ||
| 80MHz ~ 1.3GHz | 200mVrms | ||
| Min/Max/Avg |
Records min, max, and average; History graph display | ||
| Hold | Captures current reading | ||
| Peak Hold | Records peak max, min; History graph display | ||
|
Function Generator
|
|||
| Output | Sine, triangle, square wave | ||
| Range | 40Hz ~ 50MHz (6 range) | ||
| Display | 3 digits | ||
| Output Impedance | 600Ω | ||
| Amplitude | 2 ~ 10Vpp | ||
| Duty Cycle | 25% ~ 75% | ||
| Display frequency, period, duty cycle, and amplitude simultaneous in one screen | |||
|
Logic Analyzer
|
|||
| Vertical | Input Channel |
1 channel |
|
| Input Impedance | 1MΩ | ||
| Protection Level | 50Vpp Max | ||
| Horizontal | Sweep time : 125ns - 2s/div (23 divisions), Mode : Auto | ||
|
General Spesifications
|
|||
| Power | 6 AA cells (9V Alkaline) or 6 A (7.2V) Ni-Cd battery or 2 rechargeable Ni-Cd battery pack or AC Adapter with internal charger | ||
| Size / Weight | H220 x W107 x D55mm / Approx. 800g | ||
| Standard Accessories | Alligator Clip Set, Test Leads, Holster, AC/DC Power Adaptor with Internal Charger, Ni-Cd Battery Pack, Scope Probe (1:1), BNC/Banana Adaptor, RS232 Interface Cable with Software, Manual, Constant Certificate. | ||
| Optional Accessories | AC Current Adapter, Humidity Adapter, Temperature Adapter, Thermal Printer, Deluxe Carrying Bag, Certificated of Calibration. |
||
