Total Station Topcon ES-101 1-Second Reflectorless

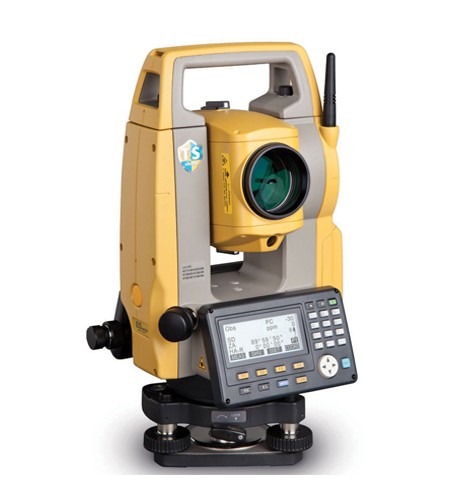

Topcon ES-101 1-Second Reflectorless Total Station
This innovative Topcon ES-101 Total Station sets a new bar on performance, speed, precision and security. With 1-second accuracy, the Topcon ES was designed from the ground up to deliver the very latest technology advantages in a small, sleek design.

The Topcon ES-101 Total Station feature class leading EDM that is able to measure up to 1,640 feet in reflectorless mode and approximately 13,123 feet using a single prism at an incredible 2mm + 2ppm accuracy. Measurements can be as fast as 0.9 seconds and the Topcon EDM algorithm reduces the signal noise associated with non-prism measurements, providing accurate results over longer distance.

Advanced Angle Accuracy
Topcon’s advanced Independent Angle Calibration System (IACS) allows the survey instrument to self-calibrate its own angle measurement system. With tangents that lock, you can be assured that the instrument will hold your angle in place.

Exclusive Bluetooth Communication
LongLink is another incredible world's first technology from Topcon. When connected with an external data collector, LongLink communication provides control at the remote rod position. The controller operator can record the data for codes and rod heights at the point of measurement. For stakeout, the remote operator can view directions required to find the next stake point. The system becomes very productive where the instrument man simply needs to follow, aim, and focus on the remote prism.

Topcon TSshield Maintenance and Security
Each Topcon total station has a telematics card installed that will communicate to the Topcon servers every day. The system then reviews what firmware version is installed. From this information Topcon can send an alert to the ES total station if a newer version is available.

The ES total stations must be registered at the point of sale. From registration comes the power to control the operation of the ES. An owner can log into the TSshield website and lock an instrument if lost or stolen. This theft deterrent functionality is the first in the industry.

Long Life Battery and Durability
With 36-hour operating time and a dual black and white LCD display, this survey instrument improves workflow and productivity. And with an IP-66 rating, this field instrument is dustproof and highly water-resistant.

The ES-101 total station has a 10,000-point internal memory for storing field data, USB and RS-232c serial port and can be used with any of Topcon's field controllers, such as the Topcon Tesla, FC-2600, FC-250, FC-236 and FC-25.

This Topcon total station package comes with a: lens cap, lens hood, stylus pen, tool kit, USB stick, carry case with straps, wiping cloth, battery, battery charger  and a 2-year manufacturer’s warranty.

Features Topcon ES-101 1-Second Reflectorless
• 1-second accuracy
• 10,000-point internal memory
• Up to 8GB USB flash memory
• LongLink wireless technology
• 1,640 foot range
• Reflectorless
• Independent Angle Calibration System for adjusting own angle measurement
• Coaxial red laser pointer
• Laser plummet
• EDM trigger key for quick measurement
• USB and RS-232C serial port
• Up to 36-hour battery life
• Water resistant and dustproof to IP-66
• Dual black and white LCD display
• Alphanumeric keyboard
• TSshield advanced security and maintenance system

Specifications Topcon ES-101 1-Second Reflectorless

General
Weight	12.3 lbs (5.6 kg)
Dimensions	7.5 in x 7.5 in x 13.7 in (19.1 cm x 19 cm x 34.8 cm)
Warranty	1-year
Protection Class	IP66 (dust proof and powerful water jets and heavy seas resistant)
Internal Memory	10,000 points
Guide Light	Green and red LED; Operating time: 1.3 to 150 m (4.3 to 490 ft)
Angle Measurement
Measuring Method/Reading System	Independent Angle Calibration System (IACS)
Minimum Reading	0.5-second/1-second
Accuracy	1-second
Distance Measurement
Unit of Measure (distance display)	m/ft
EDM Accuracy (Precision)	±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism
Minimum Reading	500 m (1,640 ft)
Tilt Sensor/Compensator
Range	± 6
Type	Liquid
Method	Electronic Automatic
Battery/Power
Power Source	Rechargeable Li-ion battery
Battery Life	36 hours
Battery Life Alert	yes
Telescope
Length of Tube	6.7 in (17.1 cm)
Image	Erect
Diameter of Objective Lens (Aperture)	1.9 in (48mm) EDM
Magnification	30x
Field of View	1 degree 30 arcmin
Resolving Power	2.5 arcsec
Minimum Focus Distance	1.3 m (4.3 ft)
Reticle Illumination	5 brightness levels
Reflectorless	yes
Display and Keypad
Type	Black and white LCD
Sides	Dual
Keys	Alphanumeric
Touchscreen	yes
Backlight	yes
Temperature
Operating	-4Fº~140ºF (-20ºC~60ºC)
Applications
Surveying and Construction	yes
Mapping and GIS (geographic information systems)	yes
Utilities	yes
Environment Studies	yes
Geomarking	yes
Archaeology	yes
Accident Reconstruction	yes
Measurement Range (under fair weather conditions)
Single Prism	4,000 m (13,123 ft)
Triple Prism	5,000 m (16,404 ft)
No Prism	500 m (1,640 ft)
Mini Prism	500 m (1,640 ft)
Reflector Sheet	500 m (1,640 ft)
Functions
Coordinate Measurement Point	yes
Angle and Distance Stake Out	yes
Stake Out Line	yes
Offsets	yes
Missing Line	yes
Remote Elevation	yes
Resection	yes
Area Calculation	yes
Measurement Time
Fine	0.9-second
Rapid	0.7-second
Tracking	0.3-second
Laser Plummet
Accuracy	±1.0 mm/1.3 m
Class	2
Wavelength	635 nm
Interface
Bluetooth	Class 1 LongLink technology
USB	Type A and mini B
Pin Port	RS-232C
