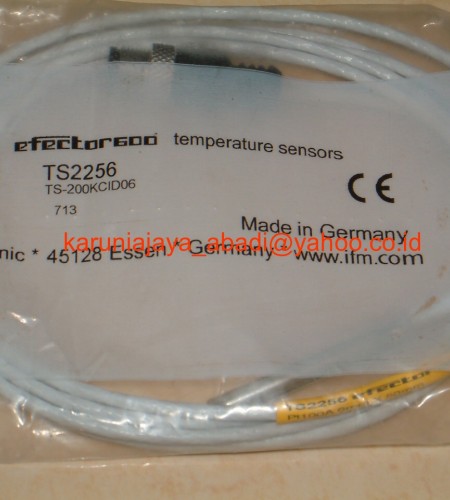

TS2256 IFM Efector Temperature Sensors
Gambar Produk
TS2256 IFM Efector Temperature Sensors
Brand
IFM Efector
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
237 kali
Update Terakhir
13-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi TS2256 IFM Efector Temperature Sensors
| Product characteristics | ||||||
| Temperature sensor for connection to evaluation units | ||||||
| Ø 6 mm | ||||||
| Cable with connector | ||||||
| Installation length EL: 50 mm | ||||||
| Connection to control monitor TP / TR | ||||||
| Measuring range: -50...250 °C / -58...482 °F | ||||||
| Measuring element: 1 x Pt 100, to DIN EN 60751, class A | ||||||
| Application | ||||||
| Application | liquids and gases | |||||
| Minimum installation depth [mm] | 15 | |||||
| Electrical data | ||||||
| Connection to control monitor | TP / TR | |||||
| Protection class | III | |||||
| Measuring / setting range | ||||||
| Measuring range | -50...250 °C | -58...482 °F | ||||
| Accuracy / deviations | ||||||
| Accuracy | ± (0.15 K + 0.002 x |t|) | |||||
| Reaction times | ||||||
| Dynamic response T05 / T09 [s] | 11 / 37 *) | |||||
| Environment | ||||||
| Protection | IP 67 | |||||
| Tests / approvals | ||||||
| MTTF [Years] | 22831 | |||||
| Mechanical data | ||||||
| Materials (wetted parts) | stainless steel 316Ti / 1.4571 | |||||
| Probe diameter [mm] | 6 | |||||
| Probe length L [mm] | 50 | |||||
| Installation length EL [mm] | 50 | |||||
| Housing materials | stainless steel 316Ti / 1.4571; PFA/PTFE | |||||
| Weight [kg] | 0.067 | |||||
| Electrical connection | ||||||
| Connection | PTFE cable / 2 m; with M12 connector | |||||
Wiring
|
||||||
| Remarks | ||||||
| Remarks |
|
|||||
