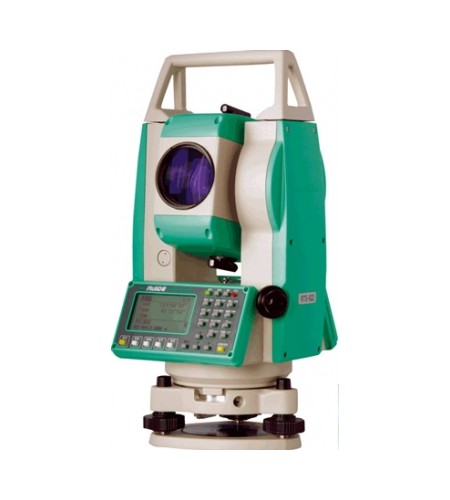

Jual Total Station Ruide RTS 822A

TELESCOPE
Length 154mm
Objective Lens Diameter Telescope: 45mm
Magnification 30x
Image Erect
Field of View 1 30
Resolving Power 3 "
Mini. Focus 1.0m
DISTANCE MEASUREMENT
Single Prism 2000m
Non-Prism N/ A
Accuracy - Prims Mode ( 2mm+ 2ppm x D) m.s.e.
- Non-Prism N/ A
Measuring Time Fine: 1.2s, Normal: 0.7s
Meteorologic Correction Manual Input
Prism Constant Manual Input
ANGLE MEASUREMENT
Method Absolute Encoding
Detecting System H: 2 sides V: 2sides
Min. Reading 1 / 5
Accuracy 2 / 5
Diameter of Circle 79mm
Vertical Angle 0 Zenith: 0 / Horizontal: 0
Unit 360 / 400gon/ 6400mil
DISPLAY
Display Unit Graphic LCD 160x90 dots with White Backlight
No. of Unit 2 sides
Keyboard Alphanumeric Keys
TILT CORRECTION
Tilt Sensor Single Axis
Method Liquid Electric
Range 3
Accuracy 1
LEVEL SENSITIVITY
Plate Level 30 / 2mm
Circular Level 8 / 2mm
OPTICAL PLUMMET ( OPTIONAL INTERNAL LASER PLUMMET)
Image Erect
Magnification 3X
Focusing Range 0.3m ~
Field of View 5
DATA STORAGE & INTERFACE
Internal Memory 10, 000 pts or 20, 000 coord. ( Fixed Only)
Data Interface RS232
GENERAL
Laser Class - EDM Class II
Laser Plummet Class II
Working Temperature -20 C ~ + 50 C
Battery Type Rechargeable Ni-H Battery
Battery Voltage DC 6V
water & dust proof IP66
Working Time 8h


Lengkap Set:
2 Unit Almunium Tripod
1 Unit Prisma Poligon/ Tribrach
1 Unit Prisma Detils/ Prisma Pole
1 Unit Range Pole / Jalon
1 Unit Kabel Data+ CD Software
