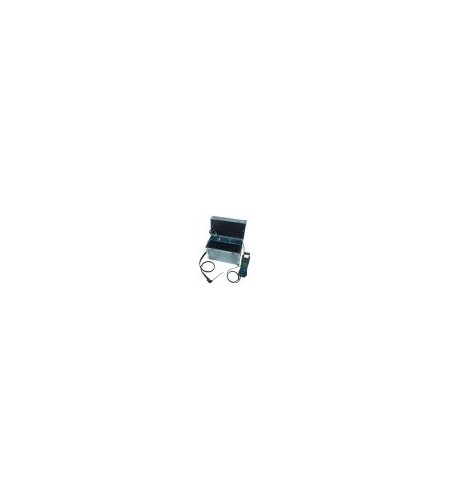

AOIP GREENLINE 6000 Hand-held industrial combustion gas analyzer with 6 sensors
Perhatian!
Spesifikasi AOIP GREENLINE 6000 Hand-held industrial combustion gas analyzer with 6 sensors
| Measured parameter | Range | Resolution | GreenLine 6000 |
| O2 | From 0 to 25% vol. | 0.1 % | EC |
| CO | From 0 to 8000 ppm | 1 ppm | EC |
| CO | From 0 to 20000 ppm | 1 ppm | EC |
| CO LOW | From 0 to 500 ppm | 0.1 ppm | EC |
| CO | From 0 to 10% | 0.01% | EC |
| CO2 | From 0 to 99.9% | 0.1% | Calc |
| NO | From 0 to 4000 ppm | 1 ppm | EC |
| NO LOW | From 0 to 500 ppm | 0.1 ppm | EC |
| NOx | From 0 to 4000 ppm | 1 ppm | Calc |
| NO2 | From 0 to 1000 ppm | 1 ppm | EC |
| NO2 LOW | From 0 to 100 ppm | 0.1 ppm | EC |
| SO2 | From 0 to 4000 ppm | 1 ppm | EC |
| CxHy | From 0 to 5% | 0.01% | Pellistore |
| H2S | From 0 to 1000 ppm | 1 ppm | EC |
| Efficiency | From 1 to 99.9% | 0.1% | Calc |
| Excess air | From 1 to infinite | 0.01% | Calc |
| Delta P | ±100 hPa | 0.01 hPa | ✓ |
| Tair/Tgas | -10...100°C / 0...1000°C | 0.1°C | Pt100 / Tc K Calc |
Further features
| Zero calibration | Automatic calibration procedure at instrument power-on. Fresh air inlet with electrovalve and separate pneumatic circuit |
| Self-diagnosis | Sensor efficiency test with diagnostic page |
| Gas level alarms | Programmable from PC with GasConfig software |
| Sampling pump | 2.2 l/min - 220 mbar with electronic flow controller |
| Smoke measurement | Using the heated probe or the optional external manual pump Index memory store and printout capability as standard |
General specifications
| Size | MCU: 455 x 205 x 365 mm RCU: 115 x 90 x 330 mm |
| Weight | MCU: 10 kg RCU: 0.9 kg |
| Power supply | 110 / 230 VAC (50/60 Hz) |
| Battery | Type: Rechargeable 7.2 Ah Battery life: 10 hours continuous use |
| Communication ports | RS 232 Bluetooth |
| Internal test memory | Up to 1,000 complete analysis data points structured by Tags |
Environmental specifications
| Operating reference range | From -5°C to +45°C (up to 50°C for short time) |
| Storage temperature limits | From -20 to +60°C (3 months max. at temperatures exceeding the operational limits) |
