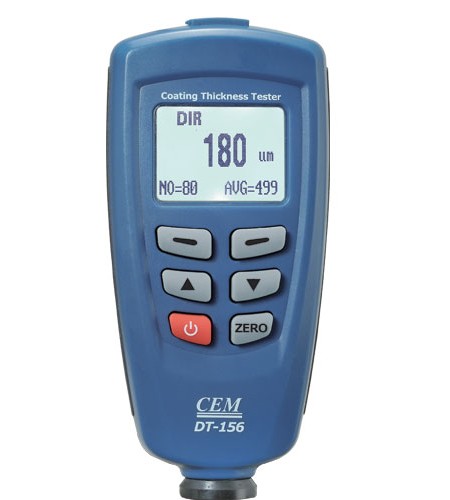

081385857180 Jual Coating Thickness Tester CEM DT 156

Features:

1. Non-magnetic coatings(e.g. paint, zinc)on steel

2. Insulating coatings(e.g. paint)on no-ferrous metals

3. No-ferrous metals coatings on insulating substrates

4. Menu operation system

5. Two measuring mode: CONTINUE and SINGLE mode

6. Two working Mode: DIRECT and GROUP mode

7. Statistic Display: AVG, MAX, MIN, NO., S.DEV

8. One point calibrating, two points calibrating and basic calibrating easily

9. Memory for 400 readings(80 DIRECT and 320 GROUP readings)

10. Delete single readings and all group readings easily

11. High alarm and Low alarm for all working mode

12. Low battery, error indication

13. USB interface for PC software(windows 98/2000/xp/vista)



Specifications:

Sensor probe


F


N

Working principle


magnetic induction


Eddy current principle

Measuring range


0~1250um


0~1250um

Guaranteed tolerance (of reading)


(+/- 3%+1)um


(+/- 3%+1.5)um

Low range Precision


0.1um


0.1um

Minimum curvature radius


1.5mm


3mm

Diameter of Minimum area


3mm


5mm

Basic critical thickness


0.5mm


0.3mm

Size(HxWxD)


113.5mm x 54mm x 27mm

Weight


110g
