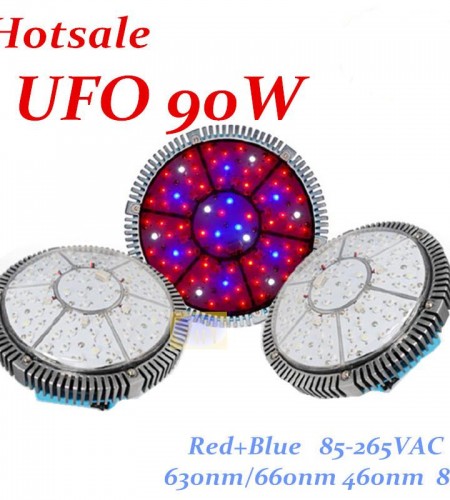

150W UFO plant grow lights Ufo led grow light 2014 New Arrival super 90w 48*3W UFO LED Grow light
Perhatian!
Spesifikasi 150W UFO plant grow lights Ufo led grow light 2014 New Arrival super 90w 48*3W UFO LED Grow light
90W UFO led grow light Specification
Specification |
|||
Name |
90W LED Grow Light |
Actual power |
85~95W |
Model |
TR-UFO-90W |
LED Qty |
48pcs*3W |
Input voltage |
AC100~240V |
LED color |
Red(630nm)/Blue(460nm) |
Output voltage |
DC55~70V |
Lifespan |
50,000 Hours |
Input current |
670~700mA |
Working frequency |
50~60Hz |
PF |
0.9 |
Working environment |
-20~40°C,45%~95%RH |
Product size |
260*136mm |
N.W. |
2.86kg |
Inner carton size |
290*290*180mm |
G.W.(Inner carton ) |
3.3kg |
Outer carton size |
590*300*370mm |
G.W.(Outer carton ) |
14.05kg |
Standard configuration |
LED Light x1,Power line x1,Chaining x2 |
||
Remarks |
The above parameter is based on Red:Blue=8:1, for reference only |
Illumination and PAR value data sheet |
|||||||
Height(cm) |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
PAR (umol m-2s-l) |
580 |
170 |
83 |
50 |
32 |
14 |
8 |
Illumination(lux) |
15080 |
4880 |
2880 |
1335 |
816 |
380 |
221 |
Irradiation Area(M2) |
9.62 |
14.51 |
18.84 |
22.21 |
22.38 |
28.26 |
34.19 |
(Remarks: the irradiation area is base on PAR value>10 )
Characteristics:
1. Use plastic and die casting aluminum shell, 1, Antirust and antiseptic 2, Elegant appearance and beautiful in colour 3. Reducing the weight of the whole light 4, Stable afety performance
2. Use the patented double cavity coolingstructure; 1, The thermal radiation properties is increased by 50% 2. Effectively prevent the greenhouse effect in the lamp 3, Due to the good heat dissipation structure design, make the lamp can run smoothly under 700mAcurrenthigh-power, created the miracle in the industry, greatly improve the effective utilization rate of the LED, fully improve the cost performance, reducing 60%decibels of the fan noise.
3. Unique back shell air intake design is our company's patent design, created the waterproof and dustprooffan heat dissipation lamps ,thus developed using the fan heat dissipation.
4. The whole lamp circuit use plug connection, the lamp board and power supply respectively in the transparent cover and the backshell,more convenient and simple for maintenance.
5. Useadvanced isolation power supply and soft start protection technology, to prevent the high voltage when turn on the light fromdamaging the lamp body.
Shenzhen cidly Optoelectronic Techno
shenzhen CIDLY Optoelectronic Technology Co., Ltd was established in 2009 , the factory is located in Shenzhen Special Economic Zone , elegant environment and convenient transportation of water Tian Dingfeng Technology Park , Shiyan , China has developed into one of the largest service providers based LED series , covers an area of over 10,000 square meters , the workshop occupies more than 2000 square meters , the company's existing staff of 200 people. Our company is a diversified LED grow lights , aquarium lights R & D , manufacturing, sales and service of integrated high-tech enterprises. Company's rapid development has played an
shenzhen CIDLY Optoelectronic Technology Co., Ltd federal heavy development and marketing of all products have passed CE, ROHS, FCC, PSE certification, and actively carry out the relevant departments and the State Bureau of Technical Supervision LED Grow Light on the project and inspection of the indicators , testing standards to determine and verify special technical inspection and testing data , on the basis of the company's products meet international certification requirements on the escalating excellence, selling at home and abroad. Is currently one of the main supplier of indoor cultivation , research and cultivation, as well as crops, vegetables , germ , seedlings, planting flower cultivation used in lighting , but also the world's LED Grow Light, aquarium lights exports in the first three products are sold around the world, enjoy excellent reputation in the international market has great influence.
The appearance of high-end products , the level of technology to industry , based on heat treatment and pay more attention to improve the optical efficiency of products , with more lasting life under the circumstances to achieve the same brightness , while using superior achieve LED products are environmentally friendly and energy saving.
