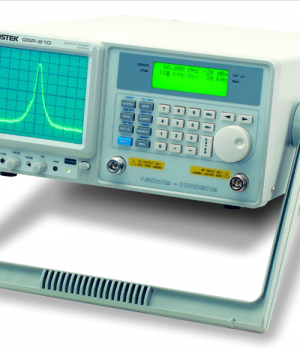

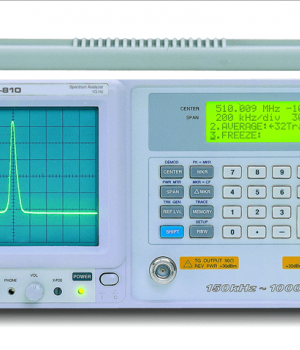

GW INSTEK GSP-810 SPECTRUM ANALYZERS
Gambar Produk
GW INSTEK GSP-810 SPECTRUM ANALYZERS
Brand
GW INSTEK
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
177 kali
Update Terakhir
23-02-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi GW INSTEK GSP-810 SPECTRUM ANALYZERS
Features
-
Frequency Range: 150kHz ~1GHz
-
Fully Digital Phase Locked Loop Technique Design
-
High Frequency Stability:±10ppm
-
RBW : 3K, 30k, 220k, 4MHz
-
High Input Protection Level : +30dBm,±25VDC
-
Reference Level Range : -30dBm~ +20dBm
-
Two Markers for Absolute and Relative Measurement
-
Support standard RS-232C Interface to connect with PC
-
Options: Tracking Generator, Power Meter, Remote Control Software
|
FREQUENCY
|
|
|
Frequency Range
|
150kHz~1GHz
|
|
Aging Rate
|
± 10ppm, 0~50°C, 2ppm/yr
|
|
Span Range
|
Zero, 2kHz~100MHz/div in 1-2-5 sequence
|
|
Phase Noise
|
-77dBc/Hz @ 1GHz 30kHz offset
|
|
Frequency Resolution
|
1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div
|
|
Frequency Display
|
6 1/2 digit setting
|
|
Frequency Control
|
Digital phase locked
|
|
RESOLUTION BANDWIDTH
|
|
|
RBW Range
|
3kHz, 30kHz, 220kHz, 4MHz
|
|
RBW Accuracy
|
15%
|
|
Video Bandwidth Range
|
1.6kHz/90kHz couple with RBW
|
|
AMPLITUDE
|
|
|
Measurement Range
|
-100dBm~+20dBm
|
|
Overload Protection
|
+30dBm continuous, ± 25VDC
|
|
Reference Level Range
|
-30dBm~+20dBm
|
|
Amplitude Display Range
|
75dB
|
|
Amplitude Accuracy
|
±1.5dB typical @ 0dBm, 80MHz
|
|
Frequency Flatness
|
±1.5dB over 100MHz,±2.5dB typical over entire band/±3dB:150kHz~10MHz
|
|
Amplitude Level Linearity
|
± 1.5dB over 70dB
|
|
DYNAMIC RANGE
|
|
|
Average Noise Floor
|
-95dBm @30kHz RBW, -100dBm typical /
-75dBm: 150kHz~10MHz |
|
Third Inter-Modulation
|
<-70dBc, @-40dBm input, 2tones, 2MHz apart/
<-45dBc:150kHz~10MHz |
|
Harmonic Distortion
|
<-40dBc, RF input < selected reference
|
|
Non-Harmonic Spurious
|
<-60dBc typical down from reference level, average, 5MHz/div
|
|
DISPLAY SYSTEM
|
|
|
Display Device
|
CRT Display, 8 x 10 graticule, 6-inch waveform screen
LCD Display, 4 line x 20 character data screen |
|
Display Function
|
Center Frequency Control, Bandwidth,
Reference Level, Span Range, Amplitude |
|
FUNCTIONS
|
|
|
Marker Mode
|
Absolute, relative, PK->marker, marker->center
|
|
Number of Markers
|
2
|
|
Marker Resolution
|
0.1dB, 1kHz
|
|
Marker Accuracy
|
0.1dB±amplitude accuracy
|
|
Memory
|
10 save/recall memory
|
|
Trace
|
Max. hold, average(2~32 traces), freeze(Hold)
|
|
Setup
|
Access parameters
|
|
Demodulator
|
WB FM, 120kHz deviation
MB FM, 75kHz deviation NB FM, 30kHz deviation AM Outputs : Internal speaker, 3.5mm stereo jack, wired for mono operation |
|
Calibrate Signal
|
80MHz, -30dBm
|
|
Interface
|
RS-232C standard & remote display software
(The software will be downloaded from GW Web-Site.) |
|
POWER SOURCE AC
|
|
|
|
100V/120V/220V/230V ±10%, 50/60Hz
|
|
ACCESSORIES
|
|
|
|
User manual x 1, Power cord x 1
|
|
DIMENSIONS & WEIGHT
|
|
|
|
310(W) x 150(H) x 455(D) mm
Approx. 8.5kg |
