GW INSTEK GSP-9300 SPECTRUM ANALYZERS

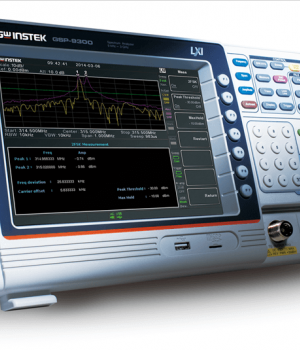

Gambar Produk
GW INSTEK GSP-9300 SPECTRUM ANALYZERS
Brand
GW INSTEK
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
171 kali
Update Terakhir
23-02-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi GW INSTEK GSP-9300 SPECTRUM ANALYZERS
Features
Frequency Frequency Range 9 kHz to 3.0 GHz Resolution 1 Hz Frequency Reference Accuracy ±[(period since last adjustment X aging rate) + stability over temperature + supply voltage stability Aging Rate ±2 ppm max. 1 year after last adjustment Frequency Stability over Temperature ±0.025 ppm 0 to 50 °C Supply Voltage Stability ±0.02 ppm Frequency Readout Accuracy Start, Stop, Center, Marker ±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution*1) Sweep points 601 Span >= 100 Hz 6 to 601 Span = 0 Hz Marker Frequency Counter Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz Accuracy ±(marker frequency indication X frequency reference accuracy + counter resolution)
[2] Typical specifications in this datasheet mean that the performance can be exhibited in 80% of the units with a 95% confidence level over the temperature range 20 to 30 °C. They are not covered by the product warranty.
[3] Nominal values indicate expected performance. They are not covered by the product warranty.
Amplitude Amplitude Range Measurement Range 100 kHz to 1 MHz Displayed Average Noise Level (DANL) to 18 dBm 1 MHz to 10 MHz DANL to 21 dBm 10 MHz to 3 GHz DANL to 30 dBm Attenuator Input Attenuator Range 0 to 50 dB, in 1 dB step Auto or manual setup Maximum Safe Input Level Average Total Power <= 33 dBm Input attenuator
≥10 dB DC Voltage ± 50 V 1 dB Gain Compression Total Power at 1st Mixer > 0 dBm Typical;Fc ≥50 MHz; preamp. off Total Power at the Preamp > -22 dBm mixer power level (dBm)= input power (dBm)-attenuation (dB) Displayed Average Noise Level (DANL)*4 Preamp off 0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10 Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40 9 kHz to 100 kHz, < -93 dBm Nominal 100 kHz to 1 MHz, < -90 dBm - 3 x (f/100 kHz) dB 1 MHz to 10 MHz, < -122 dBm 10 MHz to 3 GHz, < -122 dBm Preamp on 0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40 100 kHz to 1 MHz, < -108 dBm - 3 x (f/100 kHz) dB Nominal 1 MHz to 10 MHz, < -142 dBm 10 MHz to 3 GHz, < -142 dBm + 3 x (f/1 GHz) dB [4] DANL spec shall exclude the Spurious Response
Level Display Range Scales Log, Linear Units dBm, dBmV, dBuV, V, W Marker Level Readout 0.01 dB Log scale 0.01 % of reference level Linear scale Level Display Modes Trace, Topographic, Spectrogram Single / split Windows Number of Traces 4 Detector Positive-peak, negative-peak, sample, normal, RMS(not Video) Can be setup for each trace separately Trace Functions Clear & Write, Max/Min Hold, View, Blank, Average Absolute Amplitude Accuracy Absolute Point Center=160 MHz ; RBW 10 kHz; VBW 1 kHz; span 100 kHz; log scale; 1 dB/div; peak detector; 20 to 30°C; signal 0 dBm Preamp off ± 0.3 dB Ref level 0 dBm; 10 dB RF attenuation Preamp on ± 0.4 dB Ref level -30 dBm; 0 dB RF attenuation Frequency Response Preamp off Attenuation: 10 dB; Reference: 160 MHz; 20 to 30°C 100 kHz to 2.0 GHz ± 0.5 dB 2.0GHz to 3.0 GHz ± 0.7 dB Preamp on Attenuation: 0 dB; Reference: 160 MHz; 20 to 30°C 1 MHz to 2.0 GHz ± 0.6 dB 2.0GHz to 3.0 GHz ± 0.8 dB Attenuation Switching Uncertainty Attenuator setting 0 to 50 dB in 1 dB step Uncertainty ± 0.25 dB reference: 160 MHz, 10dB attenuation RBW Filter Switching Uncertainty 1 Hz to 1 MHz ± 0.25 dB reference : 10 kHz RBW Level Measurement Uncertainty Overall Amplitude Accuracy ± 1.5 dB 20 to 30°C; frequency > 1 MHz; Signal input 0 to -50 dBm; Reference level 0 to -50 dBm;
Input attenuation 10 dB;
RBW 1 kHz; VBW 1 kHz; after cal; Preamp Off ± 0.5 dB Typical Spurious Response Second Harmonic Intercept Preamp off; signal input -30dBm; 0 dB attenuation +35 dBm Typical; 10 MHz < fc < 775 MHz +60 dBm Typical; 775 MHz ≤ fc < 1.5 GHz Third-order Intercept Preamp off; signal input -30dBm; 0 dB attenuation > 1dBm 300 MHz to 3 GHz Input Related Spurious < -60 dBc Input signal level -30 dBm, Att. mode, Att=0 dB; 20-30 degree C Residual Response (inherent) <-90 dBm Input terminated; 0 dB attenuation; Preamp off Sweep Sweep Time Range 22ms to 1000s Span >= 100 Hz 50us to 1000s Span = 0 Hz; Min Resolution = 10 us Sweep Mode Continuous; Single Trigger Source Free run; Video; External Trigger Slope Positive or negative edge RF Preamplifier Frequency Range 1 MHz to 3 GHz Gain 18 dB Nominal
(installed as standard) Front Panel Input/Output RF Input Connector Type N-type female Impedance 50 ohm, nominal VSWR <1.6 :1 300 kHz to 3 GHz; Input attenuator ≥ 10 dB Power for Option Connector Type SMB male Voltage/Current DC +7V / 500 mA max With short-circuit protection USB Host Connector Type A plug Protocol Version 2.0 Supports Full/High/Low speed MicroSD Socket Protocol SD 1.1 Supported Cards MicroSD, MicroSDHC Up to 32GB capacity Rear Panel Input/Output Reference Output Connector Type BNC female Output Frequency 10 MHz Output Amplitude 3.3V CMOS Output Impedance 50 ohm Reference Input Connector Type BNC female Input Reference Frequency 10 MHz Input Amplitude -5 dBm to +10 dBm Frequency Lock Range Within ± 5 ppm of the input reference frequency Alarm Output Connector Type BNC female; Open-collector Trigger Input/ Gated Sweep Input Connector Type BNC female Input Amplitude 3.3V CMOS Switch Auto selection by function LAN TCP/IP Interface Connector Type RJ-45 Base 10Base-T; 100Base-Tx; Auto-MDIX USB Device Connector Type B plug For remote control only; supports USB TMC Protocol Version 2.0 Supports Full/High speed IF Output Connector Type SMA female Impedance 50 ohm Nominal IF Frequency 886 MHz Nominal Output level -25 dBm 10 dB attenuation; RF input: 0 dBm @ 1 GHz; Earphone Output Connector Type DVI-I ( integrated analog and digital) , Single Link Compatible with VGA or HDMI standard through adapter RS232 Interface Connector Type D-sub 9-pin female Tx,Rx,RTS,CTS GPIB Interface (Optional) Connector Type IEEE-488 bus connector AC Power Input Power Source AC 100 V to 240 V, 50 / 60 Hz Auto range selection Battery Pack (Optional) Battery pack 6 cells, Li-Ion rechargeable, 3S2P With UN38.3 Certification Voltage DC 10.8 V Capacity 5200 mAh / 56Wh General Internal Data storage 16 MB nominal Power Consumption <65 W Warm-up Time < 30 minutes Temperature Range +5 °C to +45 °C Operating -20 °C to + 70 °C Storage Weight 4.5 kg (9.9 lb) Inc. all options (Basic+TG+GPIB+Battery) Dimensions 210 x 350 x 100 (mm) Approximately 8.3 x 13.8 x 3.9 (in) Tracking Generator*5 (Optional) Frequency Range 100 kHz to 3 GHz Output Power -50 dBm to 0 dBm in 0.5 dB steps Absolute Accuracy ± 0.5 dB @160 MHz, -10 dBm, Source attenuation 10 dB, 20 to 30°C Output Flatness Referenced to 160 MHz, -10 dBm 100 kHz to 2 GHz ± 1.5 dB 2 GHz to 3 GHz ± 2.0 dB Output Level Switching Uncertainty ± 0.8 dB Referenced to -10 dBm Harmonics < -30 dBc Typical, output level = -10 dBm Reverse Power +30 dBm max. Connector type N-type female Impedance 50 ohm Nominal Output VSWR < 1.6:1 300 kHz to 3 GHz, source attenuation ≥ 12 dB [5] The minimum RBW filter is 10 kHz when the TG output is ON.
USB Power Sensor (Optional) Type Average power sensor Model: PWS-06 Interface to Meter USB cable to GSP930 Front-Panel USB Host Connector Type N-type male, 50 ohm nominal Input VSWR 1.1: 1 Typical 1.3: 1 Max Input Frequency 1 to 6200 MHz Sensing Level -32 to +20 dBm Max. Input Damage Power <= 27 dBm Power Measurement Uncertainty
@ 25 °C -30 dBm to +5 dBm: 1 MHz to 3GHz: ±0.10 dB typical ±0.30 dB max. 3 GHz to 6 GHz: ±0.15 dB typical ±0.30 dB max. +5 dBm to +12 dBm: 1 MHz to 3GHz: ±0.15 dB typical ±0.30 dB max. 3 GHz to 6 GHz: ±0.15 dB typical ±0.30 dB max. +12 dBm to +20 dBm: 1 MHz to 3GHz: ±0.20 dB typical ±0.40 dB max. 3 GHz to 6 GHz: ±0.20 dB typical ±0.40 dB max. Power Measurement Uncertainty
@ 0 to 25 °C -30 dBm to +5 dBm: 1 MHz to 3GHz: ±0.25 dB typical 3 GHz to 6 GHz: ±0.25 dB typical +5 dBm to +12 dBm: 1 MHz to 3GHz: ±0.20 dB typical 3 GHz to 6 GHz: ±0.20 dB typical +12 dBm to +20 dBm: 1 MHz to 3GHz: ±0.35 dB typical 3 GHz to 6 GHz: ±0.30 dB typical Linearity @ 25 °C ±3 % Measurement Speed 100 ms for Low Noise Mode Typical 30 ms for Fast Mode
-
Frequency Range: 9kHz ~ 3GHz
-
High Frequency Stability: 0.025ppm
-
3dB RBW: 1Hz ~ 1MHz
-
6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
-
Phase Noise: -88dBc/Hz @1GHz, 10kHz Offset
-
Built-in Measurement Functions: 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis, EMC Pre-test, P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
-
Built-in Spectrogram and Topographic Display Modes
-
886MHz IF Output for User’s Extended Applications
-
Remote Control Interface: LAN, USB, RS-232, GPIB (Optional)
-
Built-in Preamplifier, 50dB Attenuator, and Sequence Function
-
Optional 6GHz Power Sensor, Tracking Generator, Battery Back
Frequency Frequency Range 9 kHz to 3.0 GHz Resolution 1 Hz Frequency Reference Accuracy ±[(period since last adjustment X aging rate) + stability over temperature + supply voltage stability Aging Rate ±2 ppm max. 1 year after last adjustment Frequency Stability over Temperature ±0.025 ppm 0 to 50 °C Supply Voltage Stability ±0.02 ppm Frequency Readout Accuracy Start, Stop, Center, Marker ±(marker frequency indication X frequency reference accuracy + 10% x RBW + frequency resolution*1) Sweep points 601 Span >= 100 Hz 6 to 601 Span = 0 Hz Marker Frequency Counter Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz Accuracy ±(marker frequency indication X frequency reference accuracy + counter resolution)
RBW/Span >=0.02 ;
Mkr level to DNL>30 dB
Frequency Span
Range
0 Hz (zero span), 100 Hz to 3 GHz
Resolution
1 Hz
Accuracy
± frequency resolution*1
Phase Noise
Offset from Carrier
Fc =1 GHz; RBW = 1 kHz, VBW = 10 Hz;Average ≥ 40
10 kHz
<-88 dBc/Hz
Typical2
100 kHz
<-95 dBc/Hz
Typical
1 MHz
<-113 dBc/Hz
Typical
Resolution Bandwidth (RBW) Filter
Filter Bandwidth
1 Hz to 1 MHz in 1-3-10 sequence
-3dB bandwidth
200 Hz, 9 kHz, 120 kHz, 1 MHz
-6dB bandwidth
Accuracy
± 8%, RBW = 1 MHz
Nominal3
± 5%, RBW < 1 MHz
Nominal
Shape Factor
< 4.5:1
Normal Bandwidth ratio: -60dB:-3dB
Video Bandwidth (VBW) Filter
Filter Bandwidth
1 Hz to 1 MHz in 1-3-10 sequence
-3dB bandwidth
[1] Frequency Resolution = Span/(Sweep points - 1)
Amplitude Amplitude Range Measurement Range 100 kHz to 1 MHz Displayed Average Noise Level (DANL) to 18 dBm 1 MHz to 10 MHz DANL to 21 dBm 10 MHz to 3 GHz DANL to 30 dBm Attenuator Input Attenuator Range 0 to 50 dB, in 1 dB step Auto or manual setup Maximum Safe Input Level Average Total Power <= 33 dBm Input attenuator
≥10 dB DC Voltage ± 50 V 1 dB Gain Compression Total Power at 1st Mixer > 0 dBm Typical;Fc ≥50 MHz; preamp. off Total Power at the Preamp > -22 dBm mixer power level (dBm)= input power (dBm)-attenuation (dB) Displayed Average Noise Level (DANL)*4 Preamp off 0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10 Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40 9 kHz to 100 kHz, < -93 dBm Nominal 100 kHz to 1 MHz, < -90 dBm - 3 x (f/100 kHz) dB 1 MHz to 10 MHz, < -122 dBm 10 MHz to 3 GHz, < -122 dBm Preamp on 0 dB attenuation; RF Input is terminated with a 50 Ohm load. RBW 10 Hz; VBW 10Hz; span 500 Hz; reference level = -60dBm; trace average ≥ 40 100 kHz to 1 MHz, < -108 dBm - 3 x (f/100 kHz) dB Nominal 1 MHz to 10 MHz, < -142 dBm 10 MHz to 3 GHz, < -142 dBm + 3 x (f/1 GHz) dB [4] DANL spec shall exclude the Spurious Response
Level Display Range Scales Log, Linear Units dBm, dBmV, dBuV, V, W Marker Level Readout 0.01 dB Log scale 0.01 % of reference level Linear scale Level Display Modes Trace, Topographic, Spectrogram Single / split Windows Number of Traces 4 Detector Positive-peak, negative-peak, sample, normal, RMS(not Video) Can be setup for each trace separately Trace Functions Clear & Write, Max/Min Hold, View, Blank, Average Absolute Amplitude Accuracy Absolute Point Center=160 MHz ; RBW 10 kHz; VBW 1 kHz; span 100 kHz; log scale; 1 dB/div; peak detector; 20 to 30°C; signal 0 dBm Preamp off ± 0.3 dB Ref level 0 dBm; 10 dB RF attenuation Preamp on ± 0.4 dB Ref level -30 dBm; 0 dB RF attenuation Frequency Response Preamp off Attenuation: 10 dB; Reference: 160 MHz; 20 to 30°C 100 kHz to 2.0 GHz ± 0.5 dB 2.0GHz to 3.0 GHz ± 0.7 dB Preamp on Attenuation: 0 dB; Reference: 160 MHz; 20 to 30°C 1 MHz to 2.0 GHz ± 0.6 dB 2.0GHz to 3.0 GHz ± 0.8 dB Attenuation Switching Uncertainty Attenuator setting 0 to 50 dB in 1 dB step Uncertainty ± 0.25 dB reference: 160 MHz, 10dB attenuation RBW Filter Switching Uncertainty 1 Hz to 1 MHz ± 0.25 dB reference : 10 kHz RBW Level Measurement Uncertainty Overall Amplitude Accuracy ± 1.5 dB 20 to 30°C; frequency > 1 MHz; Signal input 0 to -50 dBm; Reference level 0 to -50 dBm;
Input attenuation 10 dB;
RBW 1 kHz; VBW 1 kHz; after cal; Preamp Off ± 0.5 dB Typical Spurious Response Second Harmonic Intercept Preamp off; signal input -30dBm; 0 dB attenuation +35 dBm Typical; 10 MHz < fc < 775 MHz +60 dBm Typical; 775 MHz ≤ fc < 1.5 GHz Third-order Intercept Preamp off; signal input -30dBm; 0 dB attenuation > 1dBm 300 MHz to 3 GHz Input Related Spurious < -60 dBc Input signal level -30 dBm, Att. mode, Att=0 dB; 20-30 degree C Residual Response (inherent) <-90 dBm Input terminated; 0 dB attenuation; Preamp off Sweep Sweep Time Range 22ms to 1000s Span >= 100 Hz 50us to 1000s Span = 0 Hz; Min Resolution = 10 us Sweep Mode Continuous; Single Trigger Source Free run; Video; External Trigger Slope Positive or negative edge RF Preamplifier Frequency Range 1 MHz to 3 GHz Gain 18 dB Nominal
(installed as standard) Front Panel Input/Output RF Input Connector Type N-type female Impedance 50 ohm, nominal VSWR <1.6 :1 300 kHz to 3 GHz; Input attenuator ≥ 10 dB Power for Option Connector Type SMB male Voltage/Current DC +7V / 500 mA max With short-circuit protection USB Host Connector Type A plug Protocol Version 2.0 Supports Full/High/Low speed MicroSD Socket Protocol SD 1.1 Supported Cards MicroSD, MicroSDHC Up to 32GB capacity Rear Panel Input/Output Reference Output Connector Type BNC female Output Frequency 10 MHz Output Amplitude 3.3V CMOS Output Impedance 50 ohm Reference Input Connector Type BNC female Input Reference Frequency 10 MHz Input Amplitude -5 dBm to +10 dBm Frequency Lock Range Within ± 5 ppm of the input reference frequency Alarm Output Connector Type BNC female; Open-collector Trigger Input/ Gated Sweep Input Connector Type BNC female Input Amplitude 3.3V CMOS Switch Auto selection by function LAN TCP/IP Interface Connector Type RJ-45 Base 10Base-T; 100Base-Tx; Auto-MDIX USB Device Connector Type B plug For remote control only; supports USB TMC Protocol Version 2.0 Supports Full/High speed IF Output Connector Type SMA female Impedance 50 ohm Nominal IF Frequency 886 MHz Nominal Output level -25 dBm 10 dB attenuation; RF input: 0 dBm @ 1 GHz; Earphone Output Connector Type DVI-I ( integrated analog and digital) , Single Link Compatible with VGA or HDMI standard through adapter RS232 Interface Connector Type D-sub 9-pin female Tx,Rx,RTS,CTS GPIB Interface (Optional) Connector Type IEEE-488 bus connector AC Power Input Power Source AC 100 V to 240 V, 50 / 60 Hz Auto range selection Battery Pack (Optional) Battery pack 6 cells, Li-Ion rechargeable, 3S2P With UN38.3 Certification Voltage DC 10.8 V Capacity 5200 mAh / 56Wh General Internal Data storage 16 MB nominal Power Consumption <65 W Warm-up Time < 30 minutes Temperature Range +5 °C to +45 °C Operating -20 °C to + 70 °C Storage Weight 4.5 kg (9.9 lb) Inc. all options (Basic+TG+GPIB+Battery) Dimensions 210 x 350 x 100 (mm) Approximately 8.3 x 13.8 x 3.9 (in) Tracking Generator*5 (Optional) Frequency Range 100 kHz to 3 GHz Output Power -50 dBm to 0 dBm in 0.5 dB steps Absolute Accuracy ± 0.5 dB @160 MHz, -10 dBm, Source attenuation 10 dB, 20 to 30°C Output Flatness Referenced to 160 MHz, -10 dBm 100 kHz to 2 GHz ± 1.5 dB 2 GHz to 3 GHz ± 2.0 dB Output Level Switching Uncertainty ± 0.8 dB Referenced to -10 dBm Harmonics < -30 dBc Typical, output level = -10 dBm Reverse Power +30 dBm max. Connector type N-type female Impedance 50 ohm Nominal Output VSWR < 1.6:1 300 kHz to 3 GHz, source attenuation ≥ 12 dB [5] The minimum RBW filter is 10 kHz when the TG output is ON.
USB Power Sensor (Optional) Type Average power sensor Model: PWS-06 Interface to Meter USB cable to GSP930 Front-Panel USB Host Connector Type N-type male, 50 ohm nominal Input VSWR 1.1: 1 Typical 1.3: 1 Max Input Frequency 1 to 6200 MHz Sensing Level -32 to +20 dBm Max. Input Damage Power <= 27 dBm Power Measurement Uncertainty
@ 25 °C -30 dBm to +5 dBm: 1 MHz to 3GHz: ±0.10 dB typical ±0.30 dB max. 3 GHz to 6 GHz: ±0.15 dB typical ±0.30 dB max. +5 dBm to +12 dBm: 1 MHz to 3GHz: ±0.15 dB typical ±0.30 dB max. 3 GHz to 6 GHz: ±0.15 dB typical ±0.30 dB max. +12 dBm to +20 dBm: 1 MHz to 3GHz: ±0.20 dB typical ±0.40 dB max. 3 GHz to 6 GHz: ±0.20 dB typical ±0.40 dB max. Power Measurement Uncertainty
@ 0 to 25 °C -30 dBm to +5 dBm: 1 MHz to 3GHz: ±0.25 dB typical 3 GHz to 6 GHz: ±0.25 dB typical +5 dBm to +12 dBm: 1 MHz to 3GHz: ±0.20 dB typical 3 GHz to 6 GHz: ±0.20 dB typical +12 dBm to +20 dBm: 1 MHz to 3GHz: ±0.35 dB typical 3 GHz to 6 GHz: ±0.30 dB typical Linearity @ 25 °C ±3 % Measurement Speed 100 ms for Low Noise Mode Typical 30 ms for Fast Mode
