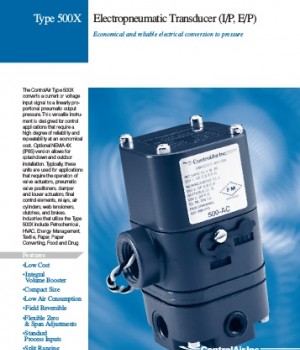

CONTROLAIR : 500X I/P-E/P TRANSDUCER

Low Output Range (Up to 30 psig)

High Output Range (Up to 120 psig)

Min./Max. Supply Pressure

Minimum - 3 psig (0.2 BAR)
above maximum output
Maximum - 100 psig (7 BAR)

Minimum - 5 psig (2 BAR)
above maximum output
Maximum - 150 psig (10 BAR)

Supply Pressure Sensitivity

<± 0.1% of span per 1.0 psig
(<± 0.15% of span per 0.1 BAR)

<± .04% of span per 1.0 psig (0.07 BAR)

Terminal Based Linearity

<± 0.75% of span

<± 1.5% of span typical, ± 2.0% max.

Repeatability

< 0.5% of span

< 0.5% of span

Hysteresis

< 1.0% of span

< 0.5% of span

Response Time

Dependent on pressure range - typically less than 0.25 sec for 3-15 psig units

Flow Rate

4.5 scfm (7.6 m3/hr ANR) at
25 psig (175 kPa) supply
12.0 scfm (20.0 m3/hr ANR) at
100 psig (700 kPa) supply

20.0 scfm (34.0 m3/hr) at
150 psig (1050 kPa) supply

Relief Capacity

2 scfm (3.4 m3/hr) at
5 psig (35 kPa) above
20 psig (140 kPa) setpoint

7 scfm (3.4 m3/hr)
at 10 psig (35 kPa) above
20 psig (140 kPa) setpoint

Maximum Air Consumption

.05 scfm (.07 m3/hr) midrange typical

.07 scfm (.14 m3/hr) midrange typical

Media

Oil free, clean dry air filtered to 40 micron

Temp. Range (Operating)

-20°F to +140°F (-30°C to 60°C)

Port Sizes

1/4 NPT(Pneumatic)
1/2 NPT(Electric)

1/4 NPT(Pneumatic)
1/2 NPT(Electric)

Weight

2.1 lbs. (0.94 kg)

2.1 lbs. (0.94 kg)
