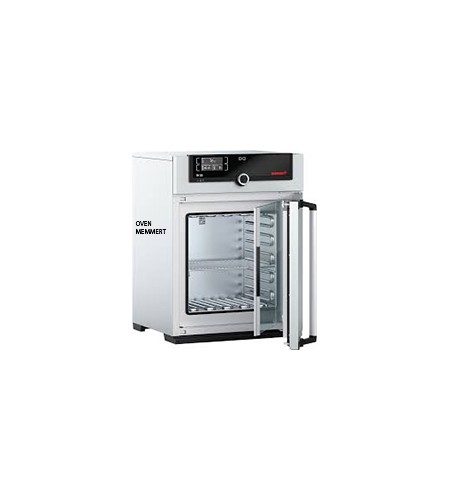

MEMMERT OVEN UNIVERSAL UN55

MEMMERT OVEN UNIVERSAL MODEL UN55

Specifications:
- Natural convection
- Temperature  Range   5° C above ambient up to + 300° C
- Adjustment of pre-heated fresh air admixture by air flap control in 10% steps
- Vent connection with restrictor flap
- Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
- Self-diagnostics for fault analysis
- 1 Pt100 sensor DIN class A in 4-wire-circuit
- Digital timer adjustable from 1 minute to 99 days
- Parameters adjustable on ControlCOCKPIT:  temperature ( Celsius or  Fahrenheit) , air flap position, programme time, time zones, summertime/ wintertime
- SetpointWAIT function - the process time does not start until the set temperature is reached
- Resolution of display for setpoint values 0.1° C up to 99.9° C, 0.5° C from 100° C and for actual values 0.1° C ( LED)
- Calibration facility directly at ControlCOCKPIT for three freely selectable temperature values
- Programme stored in case of power failure
- Incl. works calibration certificate for + 160° C
- adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12 880 to switch off the heating approx. 20° C above nominal temperature
- Dimension ( External )  585 x 787 x 514 mm w x h x d
- Fully insulated stainless steel door with 2-point locking ( compression door lock)
- Rear zinc-plated steel
- Dimensions  internal 400 x 400 x 330 mm ( w x h x d ),  Cap Volume :  53 l
- Easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
- 1 stainless steel grid
- Max. loading of chamber: 80 kg
- 230 V ( + / - 10% ) , 50/ 60 Hz / approx. 2.000 W
