Fusion Splicer INNO View 7 || OTDR & Splicer Indonesia
Gambar Produk
Fusion Splicer INNO View 7 || OTDR & Splicer Indonesia
Brand
INNO
Minimum Pembelian
1 unit
Maximum Pembelian
3 unit
Lokasi
Harga
Rp. 950.000
Dilihat Sebanyak
52 kali
Update Terakhir
09-10-2015
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Fusion Splicer INNO View 7 || OTDR & Splicer Indonesia

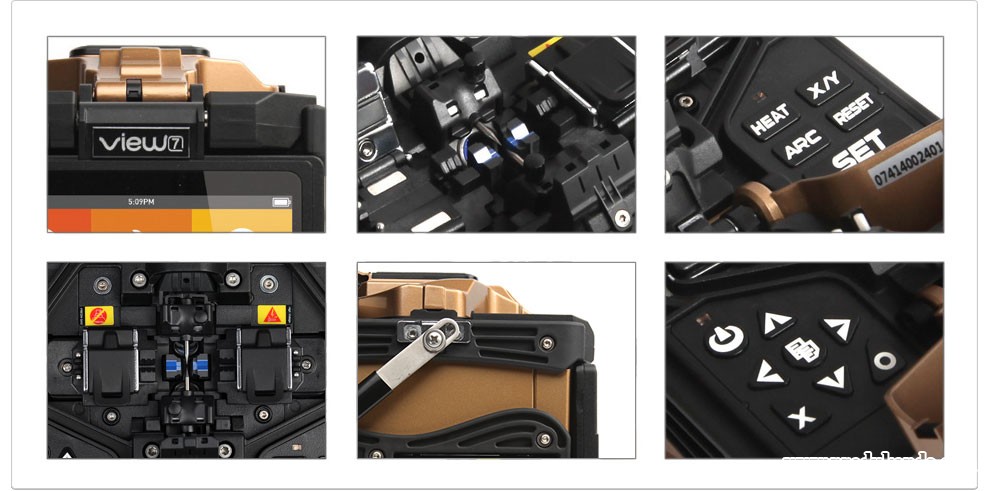

Fusion Splicer INNO View 7
View 7, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most powerful and innovative fusion splicer in the market. View 7’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can zoom in & out the image to the world’s highest magnification of 520x. View 7 offers maximum work efficiency through the fast heating time of 13s and the ultra-high battery capacity of 355 splice/heat cycles. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments.
View 7 offers the most reliable work experiences to our valuable customers.
View 7, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most powerful and innovative fusion splicer in the market. View 7’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can zoom in & out the image to the world’s highest magnification of 520x. View 7 offers maximum work efficiency through the fast heating time of 13s and the ultra-high battery capacity of 355 splice/heat cycles. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments.
View 7 offers the most reliable work experiences to our valuable customers.
- Core Alignment Splicing Method with DACAS
- (Digital Analysis Core Alignment System)
- The World’s Highest Magnification and Resolution
- 5” High-Resolution Color LCD Touch Screen
- User-friendly Smart GUI
- Double Tap to Zoom in & out
- Fast Heating Time
- Ultra-high Capacity Battery
- Detachable SOC Holder and Heating Oven
- 3 Bright LEDs and Illuminated Keypads
For Dark Environment - Ceramic Clamp for Improved Durability
- Easy to Replace Electrodes
- Protective Cover
- Harsh Weather Conditions Adaptability
- 2.17kg weight (without battery)
Display
5” High-Resolution Color LCD Touch ScreenThe View series certainly outdoes the other splicers’ viewing experience. Measuring a vast 5 inches across, the color LCD display has the highest resolution of 800 x 480 with very wide viewing angles.
Magnification
Double Tap to Zoom in & outBy double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520X. So INNO Instrument achieves that fiber condition can be easily inspected with unaided eyes.
Interface
User-friendly Smart GUIThe advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training.
Heating Performance
Fast Heating Time of 13 secView 7 has significantly increased the speed of heating to 13 sec, which delivers maximum work efficiency.
SOC Compatibility
Detachable SOC Holder and Heating OvenView 7’s SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field.
Battery
Ultra-high Capacity BatteryUltra-high capacity battery provides all-day power for working even further in the field, which is the industry’s highest 355 splicing/heating cycles by 9800mAh.
LED Working Light
3 Bright LEDs For Dark EnvironmentEven in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.
Clamp
Ceramic Clamp for Improved DurabilityCeramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface.
Electrode Cover
User-friendly Electrode CoverSpecially designed electrode covers make users replace electrodes in a much easier and faster way without any tools.
| Model | View 7 |
|---|---|
| Dimension | 160H x 133W x 155D mm (excluding rubber bumper) / 167H x 143W x 163D mm (including rubber bumper) |
| Weight | 2.80KG (with battery) / 2.17KG (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable (with VFH-40) |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Cladding Diameter | 80~150 μm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB(ITU-T Standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 7 sec / Auto mode : 8 sec |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Time | FP-03 typical heating time: 13 sec |
| Results Storage | The last 2000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity, -40~80°C |
| Display | 90° bi-directional view, 5.0” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice / Heating with Battery | 9800mAh Battery Capacity, Typical 355 times (Splice+Heat) |
| Operating Methods | Button / Touch screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0 / MINI USB |
| MODEL NO. | QTY. | |
|---|---|---|
| Fusion Splicer | View 7 | 1 |
| High Precision Cleaver | VF-15H | 1 |
| Fiber Holder | VFH-10(equipped) / VFH-40 / FH-SOC | 1 |
| SOC Heater Cover | HTS-SOC | 1 |
| AC Adapter | JS-180300 | 1 |
| Cooling Tray | CG-22 | 1 |
| Electrode | E-50 | 1 |
| Electrode Grinder | EG-18 | 1 |
| Manual CD | CD | 1 |
| Battery Pack | LBT-20 | 1 |
| Power Cable | ACC-25 | 1 |
| USB Cable | USB-5P | 1 |
| Cigarette Lighter Cable | CJ-11 | 1 |
| Carrying Case | NBX-35 | 1 |
Semua Barang kami BERGARANSI RESMI dan Harga pun Relatif MURAH.
Note:
Menerima Pengiriman Luar Kota maupun Luar jawa
Barang yang kami jual NEW 100% dan bergaransi resmi selama 1th.
Dapatkan harga miring untuk pembelian lebih dari 2 Unit.
Firmansyah
M: + 6282112325856, 02155782056 ext.105
Fax : + 6221 55782058
E-mail : fiberoptic.pwm@ gmail.com
http://baraya-fiberoptic.produkanda.co.id * otdrsplicerindonesia.blogspot.com
OTDR & SPLICER Indonesia
PT Panca Wahyu Mandiri ( OTDR & SPLICER Indonesia ) adalah sebuah perusahan yang bergerak di penjualan online Alat Alat ukur OTDR dan penyambung kabel Optic ( Splicer ) yang di dukung oleh merk merk yang sudah terkenal di indonesia seperti ANRITSU, SUMITOMO, YOKOGAWA, DVP, EXFO, FUJIKURA, JDSU, FITYEL, VEEX, INNO, DLL.
Kami hadir untuk membantu anda dalam pengerjaan proyek yang berhubunan denag fiber optic,
Kami hadir untuk membantu anda dalam pengerjaan proyek yang berhubunan denag fiber optic,
kebutuhan proyek TELKOM, XL, INDOSAT, Angkasa Pura, KAI, BMG, BPPTK, BMKG, PLN, DISHUB dan PEMDA
Selain kami jual Alat Splicer & OTDR baru kami juga menyediakn jasa repair semua merk splicer, otdr, oopm, ols, site master, spectrum, dllTeknisi kami telah menjadi ahli dalam memperbaiki hampir setiap jenis dan merek uji dan peralatan pengukuran. Kirimi kami peralatan alat ukur rusak Anda dan optik untuk evaluasi pada biaya tetap rendah. Setelah selesai, Anda akan menerima diagnostik dan rekomendasi. Dengan asumsi bahwa peralatan bernilai perbaikan. Kami akan menunggu penerimaan atau penolakan sebelum memulai tindakan lebih lanjut.
Semua unit yang kami Repair Garansi 3 Bulan…. DIJAMIN…!!
terimaksih
pt panca wahyu mandiri
OTDR & SPLICER Indonesia
Free Member
jalan hartono Raya Blok GG.2 No.5 Tangerang banten
Login Terakhir 10-11-2015
021.55782056-57 ext.105
082112325856
