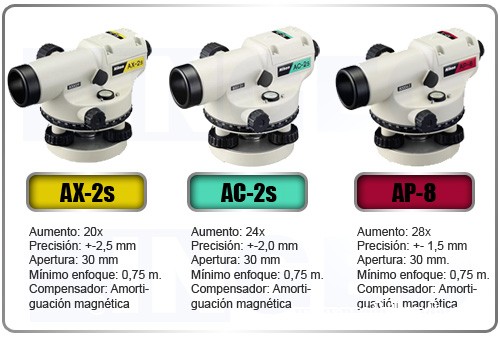

Automatic Level Nikon AX-2S

The Nikon AX-2S is compact and lightweight with water-resistant construction. It features a magnetic-dampened automatic compensator. The horizontal tangent knobs allow for unlimited range and smooth, precise pointing

Nikon Automatic Level AX-2S

• Magnification: 20 x
• Accuracy*: ± 2.5 mm
• Aperture: 30 mm
• Shortest focus: 0.75 m]
• Compensator : Magnetic dampened

Spesifikasi - Nikon AX-2S Automatic Level
Telescope - Tube length: 7.5? (190 mm); Image: Erect; Effective diameter of objective lens: 1.2? (30 mm); Magnification: 20x; Field of view: 1°30' (2.6' at 100'); Resolution power: 3.5?; Minimum focusing distance: 2.46' (.75 m); Stadia ratio: 1:100. Automatic compensator - Type: Wire-hung, air damper; Setting accuracy: ±0.5?; Range: ±16'. Level vial sensitivity - Circular level: 10'/2 mm. Standard deviation (1-km double-run leveling) - Without micrometer: ±2.0 mm. Horizontal circle - Diameter of circle: 4.3? (110 mm); Minimum increment: 1°/1 g; Reading estimation: 0.1°/0.1 g. Weight - Instrument: 2.8 lbs.; Case: 2.7 lbs.

Standard Accesories:

• 1x Unit Nikon AX-2S
• 1x Alumunium Tripod
• 1x Levelling Staff / Rambu Ukur 3m
