INSTALASI PENGOLAHAN AIR PAYAU 30M3 PERJAM
Perhatian!

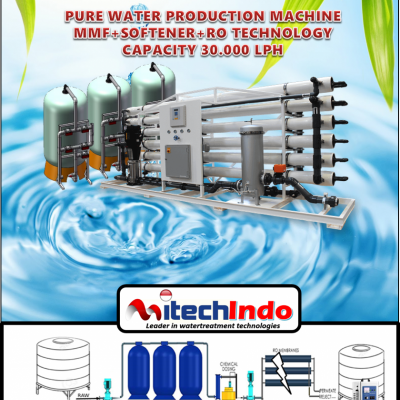

Spesifikasi INSTALASI PENGOLAHAN AIR PAYAU 30M3 PERJAM
INSTALASI PENGOLAHAN AIR PAYAU 30.000 LITER PERJAM
MAKSIMUM AIRBAKU TDS <2500 PPM
Machine Performance:
Fresh Water Production Capacity 30.000 litre per hour,
Input water quality TDS < 2.000PPM ( recommended)
Output water quality TDS < 50 PPM,
Salt Rejection Rate 98% ,
Recovery Rate( pure water : inlet water) 50~ 75%
Input Power( standard) AC380V / 50Hz
Pre-treatment Filtration:
First stage Pump for Prefilter Pump SUS 11 KW x 380V
By Multi-Media Filter Material by Fiber/ FRP
Size Tank : 86" x 96" - 3 Unit ( Activated Sand, Cationic Resin & Carbon )
Flow Rate : 60 M3 Perhour
Main Machine unit:
High Pressure Booster pump Mat'l SS 304
Electrical Consumption <30 KW x 380V
Membrane BW 8" x 40" 36 PCS
Hi-Pressure Membrane Housing 8” x 300” - 6 Unit
Main frame steel coating
Standard Accessories :
Piping Low pressure: PVC quick connection ,
For Hi-pressure Using SUS-304 Pipes, Electrical Parts
Flow metre, TDS metre, pressure metre, electromagnetic valve, etc.
and built-in RO membrane washing device,
KETERANGAN LEBIH LANJUT HUBUNGI WHATSAPP : +6285730068486
CV. MITCHELL TECHNOLOGY INDONESIA
SPESIALISASI PERUSAHAAN DIBIDANG :
Design, Perakitan dan Pemasangan Mesin Pengolahan Air , Seperti :
1. MESIN ELECTRO-DEIONIZER/ DEMINERALIZER
2. MESIN DESALINASI AIR LAUT
3. MESIN IPAL & STP TEKNOLOGI MBR
RINCIAN SCOPE PEKERJAAN :
INSTALASI PENGOLAHAN AIR ( WTP, WWTP & STP ) :
A. Water-treatment (WTP)/ Pengolahan Air Baku, Seperti:
Air Baku yang tercemar limbah
Air Baku yang tercemar/ erupsi air laut/ air payau dan air bergambut
Pengolahan Air Laut Menjadi Air Tawar dan Siap Minum
B. Waste-WaterTreatment (WWTP) & Sewage Treatment Plan (STP)
Seperti Pengolahan Air Limbah :
Untuk Konsultasi Silahkan Hubungi kami…….
