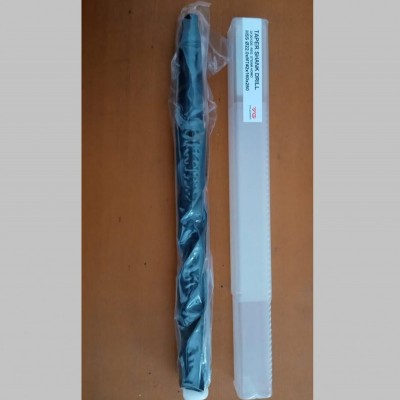

YG-1 Taper Shank Drill HSS D22 ( D1201220 )
Spesifikasi YG-1 Taper Shank Drill HSS D22 ( D1201220 )
. Mata bor ini dirancang untuk pengerjaan industrial dengan performa tinggi pada mesin bubut, mesin bor frais, maupun mesin bor magnet yang mendukung sistem cekam taper.
Berikut adalah spesifikasi teknis lengkap untuk kode produk D1201220:
Spisifikasi Utama
- Merek: YG-1 (Korea)
- Kode Seri / EDP: D1201220
- Diameter Pisau (D₁): 22.0 mm
- Ukuran Gagang / Connection Size (D₂): Morse Taper #2 (MT2)
- Panjang Ulir / Flute Length (L₁): 160 mm
- Panjang Total / Overall Length (L₂): 260 mm
- Material: HSS (High-Speed Steel / M2 Premium)
- Sudut Mata Potong (Point Angle): 118°
- Helix Angle: 30° N
- Toleransi Diameter Luar: h8
- Finishing / Lapisan: Steam Homo (Steam Tempered / Black Oxide) yang berfungsi meningkatkan ketahanan aus serta mengurangi friksi panas.
Material Aplikasi
Mata bor seri D1201 ini masuk dalam kategori general purpose industrial yang sangat optimal digunakan untuk mengebor:
- Baja karbon (carbon steel) dan baja paduan (alloy steel)
- Besi cor (cast iron / grey cast iron)
- Lapisan struktural besi dan stainless steel (berfungsi baik dengan penggunaan cairan pendingin/coolant yang tepat)
