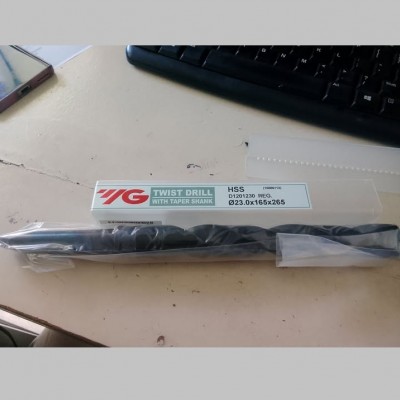

YG-1 Taper Shank HSS Drill D23 ( D1201230 )
Spesifikasi YG-1 Taper Shank HSS Drill D23 ( D1201230 )
Mata bor buatan pabrikan YG-1 asal Korea ini dirancang untuk kebutuhan industrial berat (Heavy Duty), terutama pada mesin bor duduk konvensional, mesin radial, maupun mesin bubut.
Berikut adalah spesifikasi teknis lengkap untuk item D1201230 berdasarkan YG-1 E-Catalog:
Spesifikasi Teknis (EDP No. D1201230)
- Diameter (D1): 23.0 mm
- Ukuran Taper Shank (Morse Taper): MT 2 (Connection size 27)
- Panjang Ulir / Flute (L1): 165 mm
- Panjang Total / OAL (L2): 265 mm
- Tipe Panjang: Regular (Standard Length)
- Sudut Mata Bor (Point Angle): 118°
- Sudut Heliks (Helix Angle): 30°
- Material: HSS (High-Speed Steel)
- Lapisan Permukaan (Finish): Steam Tempered / Black Oxide (berwarna hitam untuk ketahanan panas dan optimalisasi cairan pendingin)
- Toleransi Diameter Luar: h8
Rekomendasi Aplikasi Material
Mata bor ini masuk ke dalam kategori General Purpose dengan performa pemotongan yang sangat luas:
- Sangat Baik (Excellent): Baja Karbon (Carbon Steel), Baja Paduan (Alloy Steel), Baja Struktural, serta Baja Karbon Rendah.
- Baik (Good): Stainless Steel, Besi Cor (Cast Iron), Aluminium, Tembaga, Kuningan, Perunggu, hingga Titanium.
