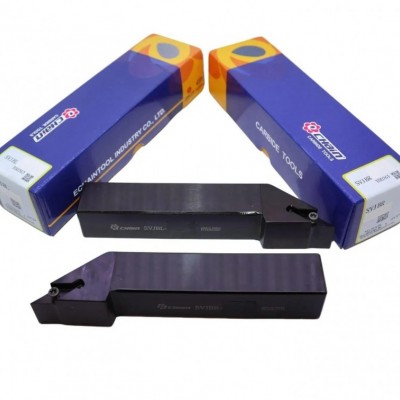

ECHAIN SVJBR-1010K11
Spesifikasi ECHAIN SVJBR-1010K11
Arti Kode Spesifikasi (Standar ISO)
Berdasarkan standar penamaan internasional, kode SVJBR-1010K11 memiliki arti sebagai berikut:
- S: Metode klem mata pisau menggunakan sekrup/baut melalui lubang tengah (screw down clamping).
- V: Bentuk insert (mata pisau) belah ketupat dengan sudut 35°.
- J: Sudut masuk/potong holder sebesar 93° (approach angle).
- B: Sudut bebas insert sebesar 5° (positive insert clearance angle).
- R: Arah potong gagang Kanan (Right hand).
- 1010: Ukuran penampang gagang (shank) sebesar 10 mm x 10 mm.
- K: Panjang total gagang pahat, yaitu 125 mm.
- 11: Ukuran panjang sisi tajam insert yang digunakan, yaitu 11 mm.

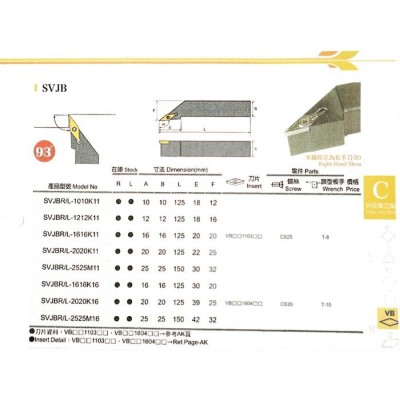

Aksesori & Kecocokan Komponen
Berdasarkan katalog resmi Echaintool, jika Anda menggunakan tipe gagang ini, komponen pendukung yang cocok adalah:
- Tipe Insert: Menggunakan mata pisau seri VB.. 1103.. (seperti VBMT 1103 atau VCMT 1103).
- Baut Pengunci: Seri CS25.
- Kunci T: Seri T-8.
