MDQNR2525M15
Spesifikasi MDQNR2525M15
MDQNR2525M15

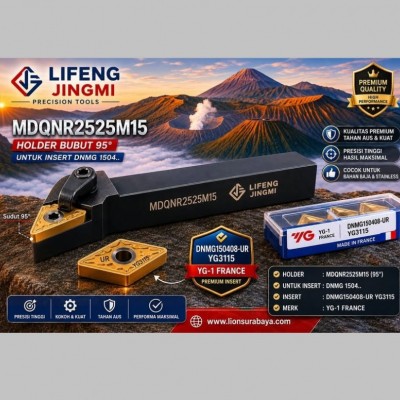

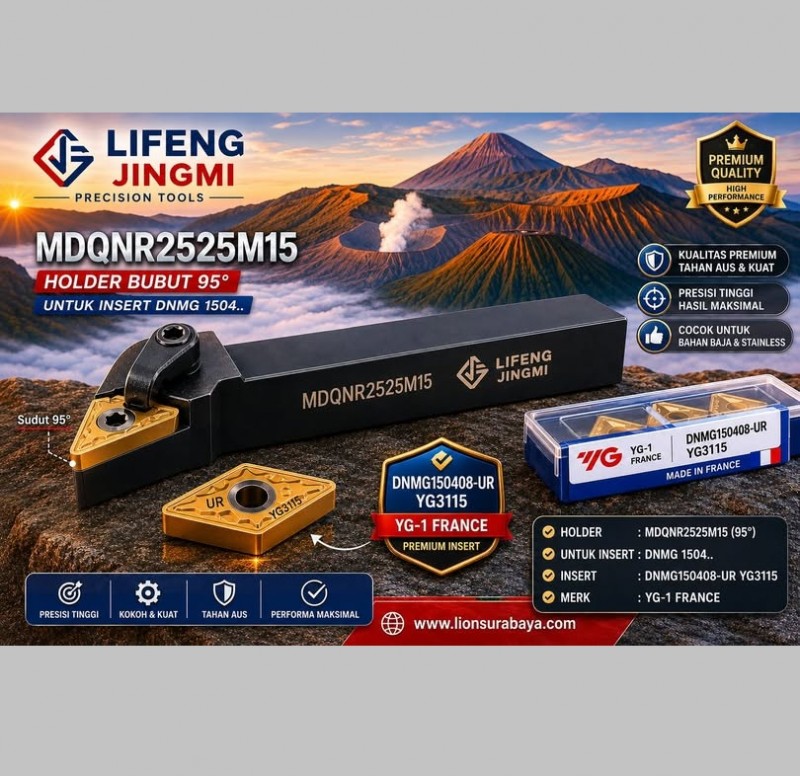

Kode MDQNR2525M15 merujuk pada sebuah tool holder (gagang pahat bubut luar) tipe multi-lock (M-type) berstandar ISO yang diproduksi oleh LIFENG JINGMI (Lifeng Precision Tools), sebuah produsen alat potong CNC asal Tiongkok. Alat ini dirancang khusus untuk proses pembubutan luar (external turning), khususnya untuk pengerjaan semi-finishing hingga finishing.
Berikut adalah rincian arti dan spesifikasi teknis berdasarkan standarisasi kode ISO tersebut:
- M: Sistem klem insert menggunakan tipe Multi-lock (kombinasi klem atas dan pin lubang) untuk stabilitas maksimal.
- D: Menggunakan mata pahat (insert) berbentuk belah ketupat (rhombic) dengan sudut 55° (seperti tipe DNMG, DNMA, atau DNMM).
- Q: Sudut potong masuk (approach angle atau lead angle) sebesar 107.5°, ideal untuk pembubutan memanjang arah balik (back-turning) dan pengerjaan profil kompleks.
- N: Sudut bebas insert (clearance angle) adalah 0° (insert negatif dua sisi).
- R: Arah pemotongan tangan kanan (Right-hand cutting).
- 2525: Dimensi penampang gagang (shank) adalah 25 mm x 25 mm.
- M: Panjang total tool holder adalah 150 mm.
- 15: Menggunakan ukuran panjang tepi potong insert sebesar 15 mm (kompatibel dengan seri DNMG 1504 atau DNMG 1506)
