MVJNR2525M16
Spesifikasi MVJNR2525M16

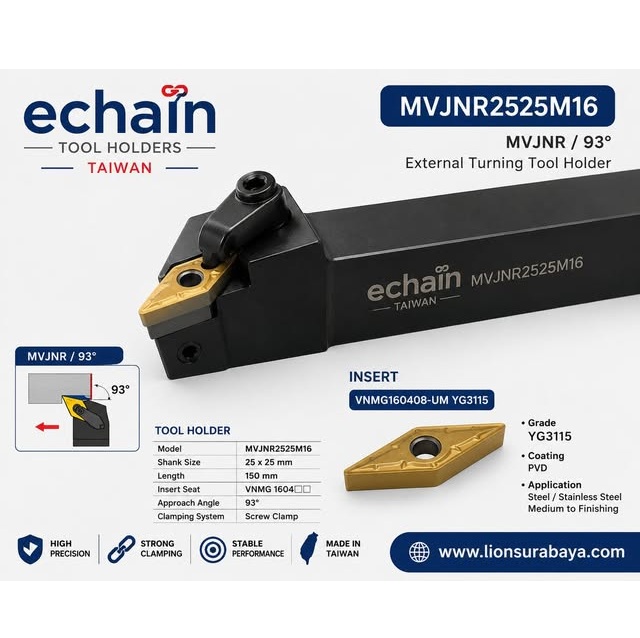

MVJNR2525M16MVJNR2525M16 adalah sebuah tool holder (gagang pahat) bubut luar yang diproduksi oleh Echain, sebuah merek alat potong industri ternama asal Taiwan. Alat ini dirancang khusus untuk memegang insert karbida tipe VNMG 1604 dengan sistem klem yang stabil untuk proses pembubutan finishing maupun medium cutting.
Berikut adalah rincian spesifikasi teknis berdasarkan kode produknya:
- M (Method): Sistem penguncian menggunakan klem atas dan pin lubang (top clamp & hole pinning).
- V (Shape): Menggunakan insert berbentuk belah ketupat (rhombic) dengan sudut \(35^{\circ }\) (tipe VNMG).
- J (Style): Sudut potong masuk (approach angle) sebesar \(93^{\circ }\).
- N (Clearance): Sudut bebas insert \(0^{\circ }\) (netral).
- R (Hand): Orientasi pemotongan tangan kanan (Right hand).
- 2525: Ukuran penampang gagang adalah \(25 \text{ mm} \times 25 \text{ mm}\).
- M: Panjang total gagang sekitar \(150 \text{ mm}\).
- 16: Menggunakan ukuran insert 16 (contoh: VNMG 160404 atau VNMG 160408).
