MTJNR1616K16
Spesifikasi MTJNR1616K16

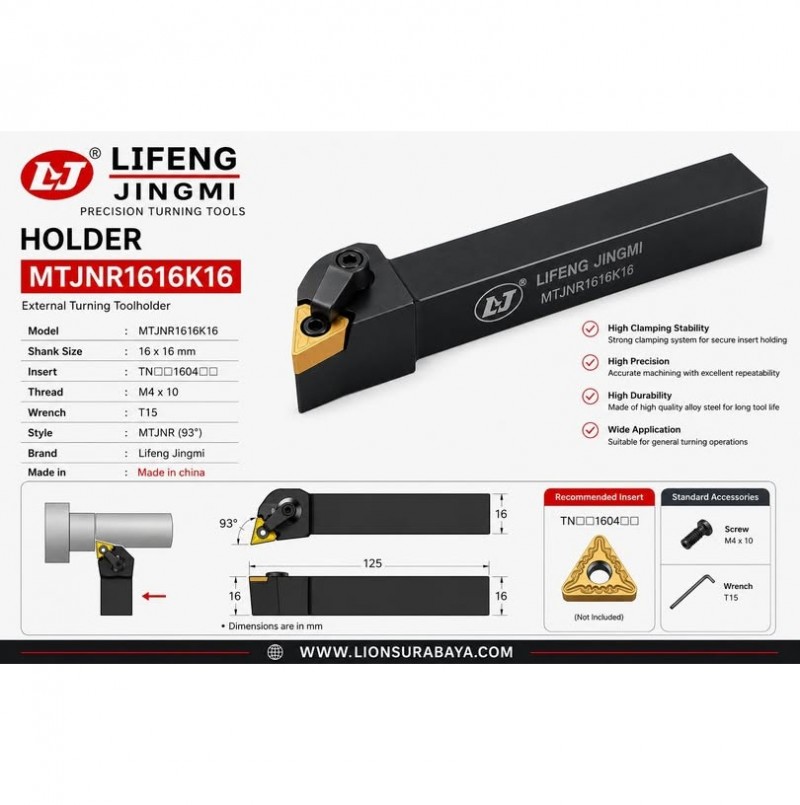

MTJNR1616K16
MTJNR 1616H16 adalah sebuah tool holder atau gagang pahat bubut luar (external turning tool holder) yang diproduksi oleh merek Li Feng Jing Mi. Kode ini mengikuti standar ISO untuk sistem alat potong bubut. [1]
Berdasarkan standar penamaan alat bubut, berikut adalah arti dari kode tersebut:
· M: Sistem pengikatan top and hole clamping (menggunakan klem atas dan baut tengah).
· T: Bentuk insert segitiga (Triangular) dengan sudut 60 derajat.
· J: Sudut potong masuk (lead angle) sebesar 93 derajat.
· N: Sudut bebas (clearance angle) insert adalah 0 derajat (negatif).
· R: Arah pemakanan kanan (Right hand).
· 1616: Ukuran gagang (shank) adalah 16 mm x 16 mm.
· H: Panjang total gagang sekitar 100 mm.
· 16: Menggunakan mata pahat (insert) dengan ukuran panjang sisi 16 mm (contohnya tipe TNMG 1604).
- (LT-4), clamp (TN16-2), screw (CS60E), dan kunci wrench (LW025/LW030).
