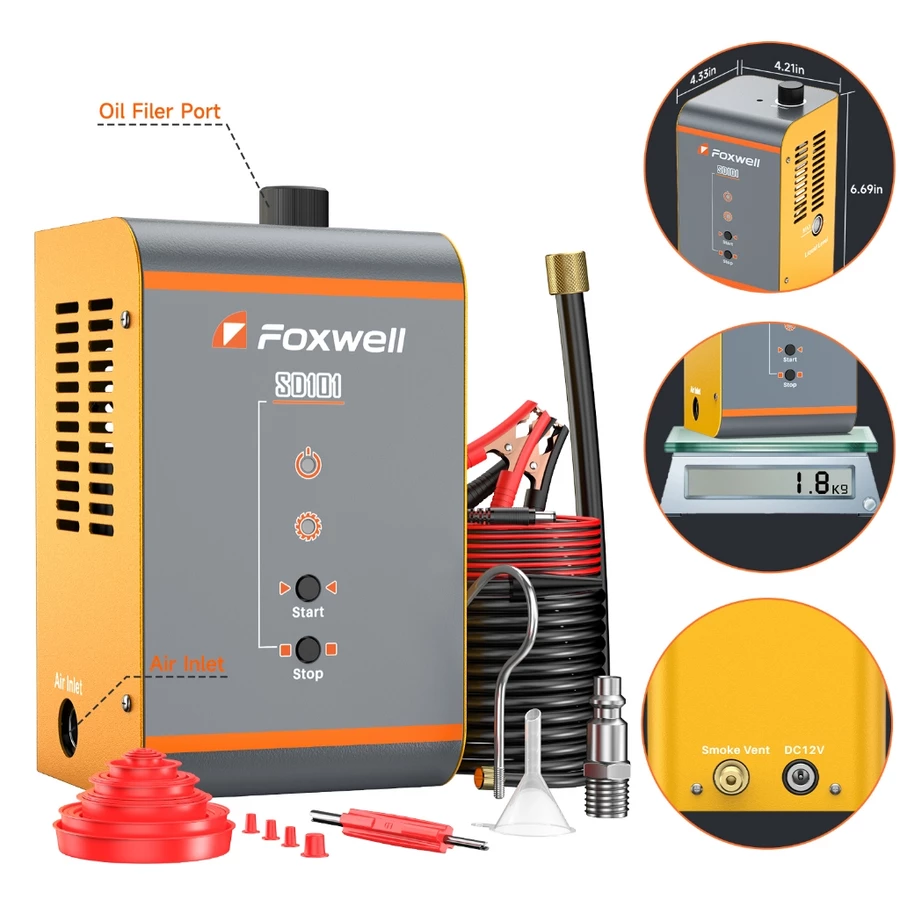

FOXWELL SD101 12V Car Smoke Leak EVAP System Leakage Analyzer Tester Machine Gas Oil Pipe Smoke Generator Auto Diagnostic OBD Store
Gambar Produk
FOXWELL SD101 12V Car Smoke Leak EVAP System Leakage Analyzer Tester Machine Gas Oil Pipe Smoke Generator Auto Diagnostic OBD Store
Brand
FOXWELL
Minimum Pembelian
1 Unit
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Timur - Surabaya - Jambangan
Harga
Rp. 960.000
Dilihat Sebanyak
38 kali
Update Terakhir
23-11-2025
Bagikan
Spesifikasi FOXWELL SD101 12V Car Smoke Leak EVAP System Leakage Analyzer Tester Machine Gas Oil Pipe Smoke Generator Auto Diagnostic OBD Store
How to Test It?
1. Inject 10ml-20ml of test oil into the smoke leak detector, filling 20ML of test fluid, under standard working conditions, can be used continuously for about 10 minutes; (about Smoke Oil: advise use the Baby oil)
2. Open the pipe that needs to be connected with the leak detector.
3. Install the airbag adapter into the sealed pipe and connect the device to the smoke conduit.
4. Connect the leak detector to the DC12V battery and the device will start working. NOTE: red clamp tp positive(+), and black clamp to negative(-)
5. The pipe will be filled with smoke and the leakage point will be checked.
6. Test the leaking pipeline, under the premise of sealing accurately, generally about 1 minute can be filled with smoke, if there is a leak, within 3 minutes, you can observe the results.
Smoke Oil Choose
The equipment is compatible with mineral oil based baby oil like Johnson & Johnson Pink bottle. Pure #5 white oil is the best choice if available.
New Arrival!!!——Foxwell SD101 A Professional Auto Pipe Leak Dedect Tool
FOXWELL SD101 is an entry-level pipeline leak detection tool. It can quickly and accurately locate leaks in any pipeline system, help technicians and automotive users quickly solve problems, and reduce diagnostic time.
Why You Need a Smoke Leak Detector？
1. Your diagnostic tool partner
The use of smoke leak detector, you can quickly and accurately determine whether the fault is caused by pipeline leakage, but also quickly find the leak point.
2. Engine fault code, 60% related to pipeline, it will help you avoid problem.
If the relevant value detected by the sensor on the car exceeds the standard range, the ECU will store the corresponding fault code and automatically trigger the engine fault light. Maintenance personnel need to check for various pressure problems. Most pressure problems are caused by a leak somewhere. Using the smoke detector, it is easier to quickly find the problem and clear the fault code.
3. Convenience for Using
Smoke leak detector, because of the characteristics of smoke, can carry out leak detection on the whole set of pipelines, visual operation, omni-directional, no dead angle, and no leakage point.
4. Operation safety
The smoke leak detector does not need to ignite the engine when it is used, but finds the leak point by simulating the real-time working condition of the engine when the engine is static. It is very safe for people or cars, effectively avoiding production accidents.
5. Improve productivity
Smoke leak detector can effectively improve the speed of vehicle maintenance, thereby improving the utilization rate of the station, as well as personnel efficiency, improve productivity.
If You Have Foxwell SD101
You will be able to Accurately detect the location of the leak, when you encounter the following situation.
-Frequent refilling oil/coolant
-Car dashboard lights up
-Smell something weird
-Engine running too hot
