Ancel Ba101 12V Car Battery Tester Digital Analyzer Tester Battery Sepeda Motor Mobil Tester ODB Official Store
Gambar Produk
Ancel Ba101 12V Car Battery Tester Digital Analyzer Tester Battery Sepeda Motor Mobil Tester ODB Official Store
Brand
Ancel
Minimum Pembelian
1 Unit
Maximum Pembelian
100 Unit
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Timur - Surabaya - Jambangan
Harga
Rp. 360.000
Dilihat Sebanyak
39 kali
Update Terakhir
22-11-2025
Bagikan
Spesifikasi Ancel Ba101 12V Car Battery Tester Digital Analyzer Tester Battery Sepeda Motor Mobil Tester ODB Official Store
ANCEL BA101 can be used to test a wide range of 12V batteries including Starting, Lighting, and Ignition (SLI), Deep Cycled and Marine (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM), and GEL cell. The major battery standards JIS, SAE, EN, DIN, and IEC are supported. BA101 12V car battery tester can easily, quickly and accurately measure the actual cold cranking amps capability, the health status of the battery itself, and the common fault of the vehicle's starting system and charging system.
Top Reason to Chose Ancel BA101 Car Battery Tester
Simple and easy to use
1. Accurate tester result in miliseconds (tolerance ±15)

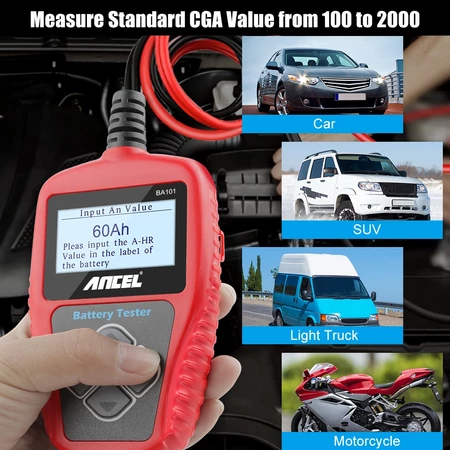

2. BA101 can test CCA100-2000, 30-220Ah, which is the highest CCA in the market
3. Test batterues on and off the vehicle
4. Battery life analysis, Life in percentage (%),Internal resistance value (m),Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
5. Test result based on JIS, EN, DIN, SAE and IEC standards.
6. Easily read LCD screen display
7. Quick test - input battery volume (AH), then it can show the battery status.
8. vehicle cranking system test - cranking time, voltage and status.
9. vehicle charging system test - load voltage, unloaded voltage, ripple status and charging system status.
10. Store the testing result, print function

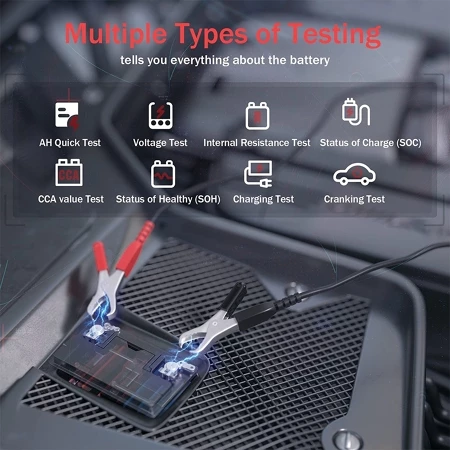

BA101 Functions:
Test Results: Good or Replace
Internal resistance value (m)
Life in percentage (%)
Cranking system
Charging system
Operating Parameters:
System voltage: 12 Volts
Input voltage range: 9V~15V
Power requirements: No internal batteries required
Capacity: Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating
Five Different Results of Battery Testing
GOOD BATTERY: The battery is without any problem.
GOOD, RECHARGE: Good battery but low current, and recharge before using.
REPLACE: The battery is already at or near the end of its use life, and please replace the battery.
BAD CELL, REPLACE: Battery interior damaged, bad cell or short circuit, and replace the battery.
CHARGE-RETEST: Unstable battery shall be recharged and retested to avoid error.
Ancel BA101 Car Battery Tester Application :
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
Packing List:
- ANCEL BA101*1
- Usb cable*1
- User manual*1
OBD Scanner Mobil Official Store
OBD Scanner Mobil Official Store Pusat Peralatan Inspeksi Mobil OBD OBD2 Scanner Mobil Battery Tester Car Spark Plug Busi Mobil Tester Ignition Scanner Code Reader Car Diagnostic Tools.
