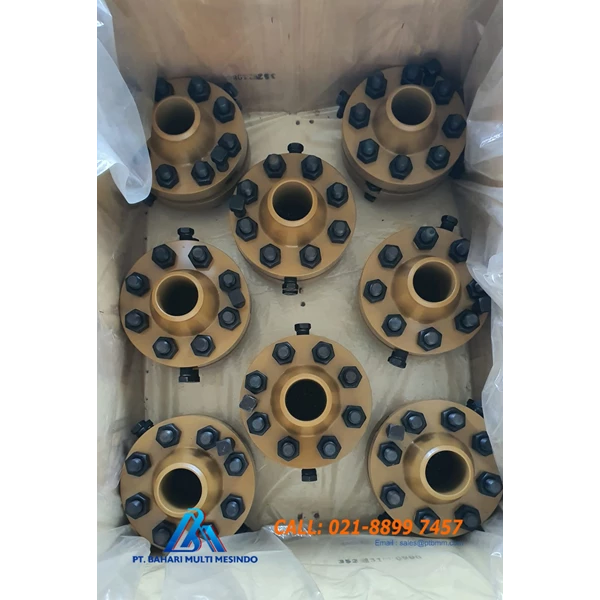

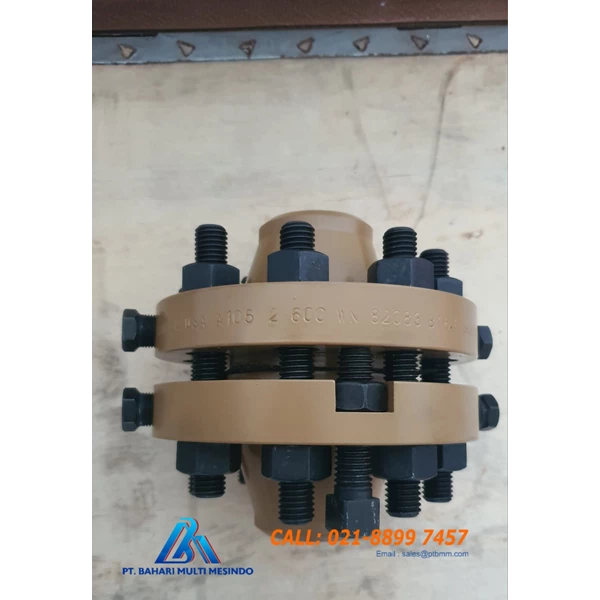

ORIFICE FLANGE AND ORIFICE PLATE DANIEL
Gambar Produk
ORIFICE FLANGE AND ORIFICE PLATE DANIEL
Lokasi
Jawa Barat - Bekasi - Tarumajaya
Harga
Kontak Kami
Dilihat Sebanyak
19 kali
Update Terakhir
01-10-2025
Bagikan
+ Penawaran
Spesifikasi ORIFICE FLANGE AND ORIFICE PLATE DANIEL
Mechanical Ratings Standard: 2-in to 8-in, ANSI 600-2500
Consult factory for other options
Flange Face And End Connections Standard: Raised face weldnek and ring-joint weldnek
Assembly Carbon Steel: furnished complete with studs (ASTM A-193 GR B7), nuts (ASTM A-194 GR 2H), (2) 0.0625-in non-asbestos gaskets and (2) jackscrewsStainless Steel: furnished complete with zinc plated studs (ASTM A-193 GR B7), nuts (ASTM A-194 GR 2H), (2) 0.0625-in non-asbestos gaskets and (2) jackscrewsDifferential Pressure Taps Location and number of tap holesStandard: 2 tap holes with orientation on top and bottom 180 deg apart, in accordance with API 14.3 (AGA3) or ISO 5167Consult factory for other tap location and number of tap optionsProcess connectionStandard: .50-in NPT standardConsult factory for other optionsTypes of tap connectionsStandard: ThreadedOptional: Socket weldConsult factory for other optionsLine bore tolerancesStandard size: Sch 40 and 80Consult factory for other optionsTemperature Range Standard: -20°F to +250°F (-29°C to +121°C)Standard (low temperature): -100°F to +250°F (-73°C to +121°C)Consult factory for other optionsMaterial Specifications Standard: A105 Carbon Steel and A350 LF-2 (low temperature applications)Consult factory for other optionsFlow Measurement Code API 14.3ISO-5167Design Code ASME B16.36Gaskets Standard gaskets for RF flanges are 0.625-in thick. (0.125-in thick gaskets are available as an option.)Grafoil gasketSpiral wound gasket without inner ringGarlock gylonSpiral wound gasket with inner ringRTJ Flanges use Daniel model 560 or 590 style plate holders. The plate holder is designed with an equivalent ring gasket to match the R-number based on size and pressure Power Pack Hidrolik
Consult factory for other options
Flange Face And End Connections Standard: Raised face weldnek and ring-joint weldnek
Assembly Carbon Steel: furnished complete with studs (ASTM A-193 GR B7), nuts (ASTM A-194 GR 2H), (2) 0.0625-in non-asbestos gaskets and (2) jackscrewsStainless Steel: furnished complete with zinc plated studs (ASTM A-193 GR B7), nuts (ASTM A-194 GR 2H), (2) 0.0625-in non-asbestos gaskets and (2) jackscrewsDifferential Pressure Taps Location and number of tap holesStandard: 2 tap holes with orientation on top and bottom 180 deg apart, in accordance with API 14.3 (AGA3) or ISO 5167Consult factory for other tap location and number of tap optionsProcess connectionStandard: .50-in NPT standardConsult factory for other optionsTypes of tap connectionsStandard: ThreadedOptional: Socket weldConsult factory for other optionsLine bore tolerancesStandard size: Sch 40 and 80Consult factory for other optionsTemperature Range Standard: -20°F to +250°F (-29°C to +121°C)Standard (low temperature): -100°F to +250°F (-73°C to +121°C)Consult factory for other optionsMaterial Specifications Standard: A105 Carbon Steel and A350 LF-2 (low temperature applications)Consult factory for other optionsFlow Measurement Code API 14.3ISO-5167Design Code ASME B16.36Gaskets Standard gaskets for RF flanges are 0.625-in thick. (0.125-in thick gaskets are available as an option.)Grafoil gasketSpiral wound gasket without inner ringGarlock gylonSpiral wound gasket with inner ringRTJ Flanges use Daniel model 560 or 590 style plate holders. The plate holder is designed with an equivalent ring gasket to match the R-number based on size and pressure Power Pack Hidrolik
