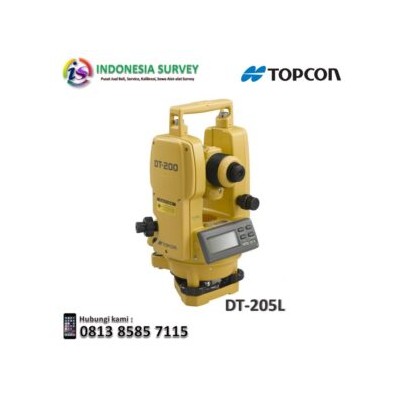

jual THEODOLITE TOPCON DT 205L hub 081908611401

• 5" Angle Measurement Accuracy
• Long Battery Life
• Waterproof and Dustproof Digital Theodolites
• 633nm diode laser that can
• be seen up to 50 meters away
• outside in daylight

Telescope
Length    152 mm
Objective lens    45 mm
Magnification    30x power
Field of view    1°30'
Resolving power    2.5 power
Minimum focus    1m cm
Stadia ratio    100
Stadia constant    0
Sighting collimator    Double
Electronic Angle Measurement
Method    Absolute Reading
Detecting    2 horizontal sides, 1 vertical sides
Minimum reading    1"/5" arc seconds, 0.2mgon/1mgon mgon
Accuracy    5 arc seconds, 71mm Diameter Circle
Laser Pointer
Method    Focusing
Wave length/Power    633nm/0.6mW
Display
Display sides    2
LCD    7 segments
Data Output
Serial signal connector    RS-232C
Compensator
Tilt sensor    Vertical
Compensating range    ±3 ft
Optical Plummet Telescope
Magnification    3x power
Field of view    3° degrees
Level Sensitivity
Plate level    40°/2mm
Circular level    10°/2mm
Water Protection
Standard    IP66 rating
Power Supply
Battery    4AA batteries
Operating time Alk.
Theodolite only    140 Hours
Laser only    80 Hours
Theodolite and laser    45 Hours
Environmental
Operating Temp    -20 to +50 degrees C

• Unit Theodolite
• Plumb bob
• Tool kit
• Lint free lens cloth
• Waterproof protective cover
• Hard carrying case
• Alumunium Tripod
• Leveling Staff
