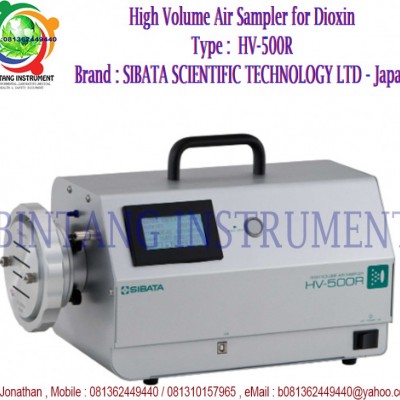

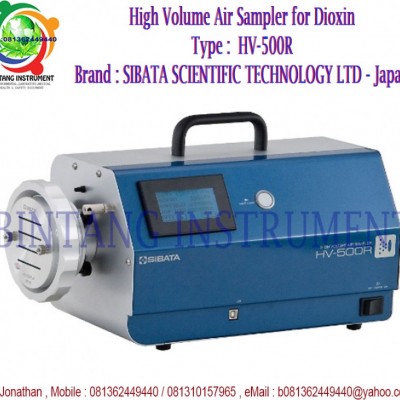

High Volume Air Sampler for Dust Open HV-500R　 SIBATA SCIENTIFIC TECHNOLOGY LTD...

Spec

• Quantity: 1 sets
• Type: HV-500R type
• Extension: HV-500R type
• Type: HV-500R type
• Mass: 8kg
• Height (mm): 271
• Width (mm): 425
• Depth (mm): 200
• Power supply: 100VAC, 10A
• Accuracy: +/- 5%
• Ambient temperature range: 0 - 40℃
• Display: Touch panel type liquid crystal
• Standard suction Flow rate: 500L/min
• Flow rate detection: Differential pressure detection method
• Suction pump: Brushless blower
• Specification: Instantaneous flow rate, Integrating flow is 25℃, Automatically corrected to a value of 1atm. (20℃ + 1atm, Or you can also correct in the real flow rate. ) The traceability of HV-500R-4S is, The traceability of a HV-500R. Temperature protection device is operated when the suction air temperature in the equipment becomes high and the blower motor is stopped.
• Accessories: Filter paper filter paper clip 1 set, Φ110mm Glass fiber filter, GB-100R-110A (10 sheets)
• Traceability: Available
