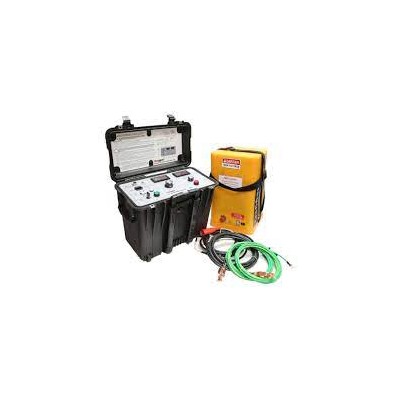

Megger 220000 Series DC Di-electric Test Sets - C2C Technologies

• Lightest weight available in air-insulated high-voltage model
• Advanced performance with long-term reliability provided by filtered half-wave rectification
• Designed for maximum operator safety

High Voltage DC dielectric test sets provide the most dependable, portable DC high voltage sources for checking the quality of electrical power cables, motors, switchgear, insulators, transformers and capacitors.

Temperature Range
Operating: -20 to +130° F (-30 to +55° C)
Storage: -40 to +150° F (-40 to +65° C)
Relative Humidity Range
Operating: 0 to 90% noncondensing
Storage: 0 to 95% noncondensing
Dimensions
Control Unit (all models)
17 H x 16 W x 7.5 D in.
(434 H x 406 W x 191 D mm)
High Voltage Unit
70 kV: 20 H x 12 W x 12 D in.
(510 H x 305 W x 305 D mm)
120 kV: 29 H x 12 W x 12 D in.
(740 H x 305 W x 305 D mm)
160 kV: 39 H x 12 W x 12 D in.
(1000 H x 305 W x 305 D mm)
*Weight
Control Unit (all models)
23 lb (10.5 kg)
High-Voltage Unit
70 kV: 44 lb (20 kg)
120 kV: 65 lb (30 kg)
160 kV: 73 lb (33 kg)
*Add approximately 2 lb (1 kg) to the weight for 230 Vac
(-47) model control units
Cables (including carrying bag)
70 kV Models: 7 lb (3 kg)
120 and 160 kV Models: 9 lb (4 kg)
External Instrument Connection
(1/4” phone plug): 0-5.5 mA output
