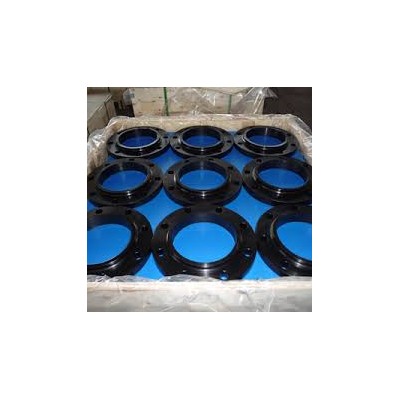

Flange Slip On
Perhatian!
Spesifikasi Flange Slip On
Specifications :
Forged F304 B16.5 150LBS Slip On Flange
Material:SS
Size:1/2″-60″
Type:slip on flange
Certificate:IS09001
Dimensional Tolerances of Slip On Flanges ASME B16.5
| Outside Diameter ≤ 24 = 1.6 mm | > 24 = � 3.2 mm |
Inside Diameter ≤ 10 = � 0.8 mm | ≥ 12 = + 1.6 mm / � 0 mm |
| Diameter of Contact Face 1.6 mm Raised Face = � 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = � 0.4 mm |
Outside Diameter of Hub ≤ 12 = + 2.4 mm / � 1.6 mm | ≥ 14 = � 3.2 mm |
| Diameter of Counterbore Same as for Inside Diameter |
Drilling Bolt Circle = 1.6 mm | Bolt Hole Spacing = � 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2.1/2 = 0.8 mm max. | ≥ 3 = 1.6 mm max. |
| Thickness ≤ 18 = + 3.2 mm / � 0 | ≥ 20 = + 4.8 mm / � 0 |
Length thru Hub ≤ 18 = + 3.2 mm / � 0.8 mm | ≥ 20 = + 4.8 mm / � 1.6 mm |
1. Forged F304 B16.5 150LBS Slip On Flange
2. Material:Stainless Steel:such as 201, 301 , 304,304L,316,316L,321 and so on.
3. Standard:GB,JIS,BS,DIN.ANSI and Non standard,
4. ANSI class :150,300,400,600,900,1500,2500
5. Size:1/2″-40″
6. Type:Slip-on flanges, Blind flanges, Lap joint flanges, Welding neck flanges,Plate flange,
7. Socket welding flanges and Treaded flanges.
8. Pressure class:150 300 400 600 900 1500 and 2500, pn :6 10 16 25 40 64 and 160 ,5K-40K and so on .
9 . Sealing surface : FF ,RF, LJ, FM ,R.T.J ,R.J and so on .
10. Production process : raw material�cutting�heating�forging�heat treatment�maching�inspection.
PT. GLOBAL PRIMA TGR
INDUSTRIAL OIL & GAS HARDWARE SUPPLIER
Office/Alamat
Ruko Bumi Indah Union Blk. ROR No. 06
Pasar Kemis Tangerang, Banten 15560
Telp. (021) 2987 6174 / (021) 59718356
E-mail. hidayat.gpp@gmail.com
Kepada Yth : Divisi Procurement Purchasing Bersama Ini Kami Ingin Memperkenalkan Perusahaan Kami GLOBAL PRIMA PERKASA Sebagai Stockies Dan Distributor Untuk Produk Material Steel Bagi Perindustrian & Project Di Indonesia. Kami Spesialis Dalam Mensupport ( Mensuply) Kebutuhan Proyek – Proyek Industri Seperti : Oil & Gas, Pipelines, Konstruksi, Pembangkit Listrik ( Power Plants ) , Pembuatan Kapal ( Ship Building ) , Boiler, Pulp & Paper, Chemical, Dll. Adapun Material Yang Bisa Kami Supply Meliputi : PIPA: Carbon Steel , Galvanis ( Welded & Seamless) Api 5L/ A106Gr.B A53 Gr.A & B, Dia.1/ 2’ ’ – 54’ ’ Dll Spiral Welded Steel Line Pipe Dia.4’ ’ – 54’ ’ , Stainless Steel Pipe Alloy Steel Pipe A33 Gr.6/ A335 P5, P11, P12, Tubing SS316/ 316L Dll Pipa Pvc, Pipa Tembaga. BRAND: SPINDO, BAKRIE, PPI, EX-CHINA, JAPAN, ETC. Steel Construction: H-Beam, IWF, Besi Beton, Siku, Channal U, CNP, INP, Assental, Plate, ( Hitam, Putih, Kapal, Bordes, Strip, Alumunium ) Pipa Kotak, Plate Stainless Steel Plate SS 304/ 316/ L, Pressure Vessel, Boiler Plate Dll FITTINGS: Elbow, Reduser ( Concentric & Eccentric) , Tee, Union, Coupling, Half, Hex Plug, Tredolet, Weldolet, Sch10, 20, 40, 80, 160 Dia.1/ 2’ ’ – 54’ ’ Dll : Stat Bold. Bold& Nut. U-Bold.Angkor Bold. Bermacam2 Semua U Kuran BRAND, JAPANT, KOREA, LOKAL CHINA, ETC, ELBOW 5D FLANGE: Forget Flanges A105-Carbon Steel, A350-LF2 CS, A182, SS304/ 316L Slip On, Welding Neck, Blind Flanges, Socket Weld, Lap Joint Dll Ansi : 150, 300, 600, 900, 1500, 2500, Jis 10K, 20K Dia. 1/ 2’ ’ 54' ’ VALVE: GATE VALVE, CHECK VALVE, GLOBE VALVE, STRAINER, MEREK, GLT, KITZ # 10K, # 150, # 300, # 600, # 900, # 3000, # DLL Kami Mengharapkan Perusahaan Kami Dapat Tercatat Sebagai Salah Satu Vendor ( Supplier) Diperusahaan Bapak/ Ibu.Kami Selalu Memberi Perhatian Khusus Untuk Semua Kebutuhan Material Yang Dibutuhkan Kapanpun Dan Menyediakan Barang-Barang Bermutu Dengan Kualitas Prima Serta Pelayanan Yang Cepat Dan Tepat, Barang Dikirim Sampai Tempat Yang Dituju. Apabila Perusahaan Bapak/ Ibu Membutuhkan Material Silakan Menghubungi Kami 021 5971 4054. Demikianlah Perkenalan Kami, Dan Selanjutnya Kami Tunggu Pesanan Dari Bapak/ Ibu. Atas Perhatian Dan Kerjasamanya Yang Telah Bapak/ Ibu Berikan Sebelum Dan Sesudahnya Kami Ucapkan Terima Kasih.
Hormat Kami,
PT. GLOBAL PRIMA PERKASA, TGR
