TM-196 3 - Axis RF Field Strength Meter
Gambar Produk

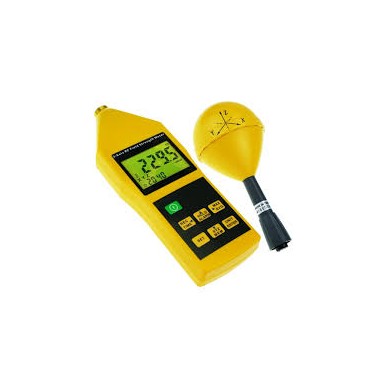

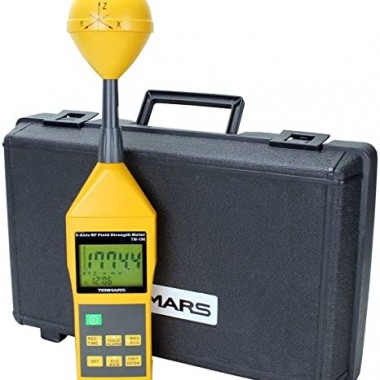

TM-196 3 - Axis RF Field Strength Meter
Update Terakhir
17-01-2023
Minimum Pembelian
1 Unit
Dilihat Sebanyak
20 kali
Lokasi
Banten - Tangerang - Cipondoh
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi TM-196 3 - Axis RF Field Strength Meter
Specifications
|
Measurement range
|
50mV/m to 11V/m
|
|
Display
|
4½ digits maximum reading 19999
|
|
Frequency range
|
10MHz~8GHz
(accuracy :±1dB at 2.45GHz)
|
|
Measurement units
|
mV/m, V/m, µA/m, mA/m,
µW/m², mW/m²,µW/cm²
|
|
Display resolution
|
0.1mV/m, 0.01V/m,
0.1µA/m, 0.001mA/m, 0.001µW/m², 0.01mW/m²,
0.001µW/cm² |
|
Manual data memory
|
200 data sets
|
|
Alarm function
|
Adjustable threshold with ON/OFF
|
|
Memory recall
|
Adjustable
|
|
Calibration factor CAL
|
The CAL setting range is from 0.10~5
|
|
Sampling time
|
3 times per second
|
|
Operating temperature
and humidity
|
0°C~50°C (32°F~122°F),
25% ~75% RH
|
|
Power supply
|
9V battery
(NEDA 1604 IEC 6F22 JIS 006P) |
|
Battery life
|
Approx. 3hours
|
|
Dimension
|
370x80x80mm (LxWxH)
|
|
Weight
|
Approx.400g (including battery)
|
Features
-
Measurement range: 38mV to 11V/m
-
Frequency range: 10MHz~8GHZ ~8GSensor: Triple Axis (X, Y, Z).
-
Manual data memory (Max & AVG) records.
-
Calibration factor, Alarm and Clock settings.
