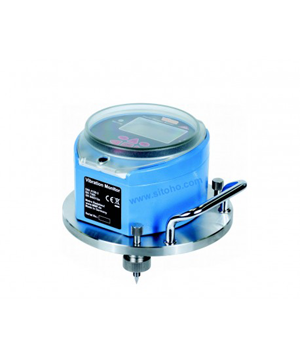

Building Vibration Meter
Spesifikasi Building Vibration Meter
Type : VM40C
Product : mmf (Germany)
Spesifikasi alat :
Standard : DIN 4150-3, BS 7385, SN 640312a
Tranduser : Triaxial piezoelectric shear type accelerometer
Measuring Range :
a, Acceleration : 0.01 - 15 m/s²
b. Velocity : 0.01-2400 mm/s at 1 Hz 0.1-30 mm/s at 80 Hz
c. Frequency : 0.8 - 100 Hz, 0.8 - 395 Hz, 5 - 150 Hz
Display : LCD with backlight, 128 x 64 pixel, 32 x 60mm²
Display data: 3 peak/ pp values (X / Y / Z)
Data Storage : max 100.000 data
Celluler Communication :4G (LTE B3, B8, B20), 2G (E-GSM-900, DCS-1800)
USB Connection : USB 2.0 full speed via 8 pin connector
PC Software : Free software tool for archiving and report
Protection Grade : IP67 EN 60529
Dimension / Weight : 150 x 140 x 80mm / 2 kg
Accessories :
a. Battre Charge
b. USB Cable VM2x-USB
c. Tripod floor plate
d. 2G/4G celluler modem

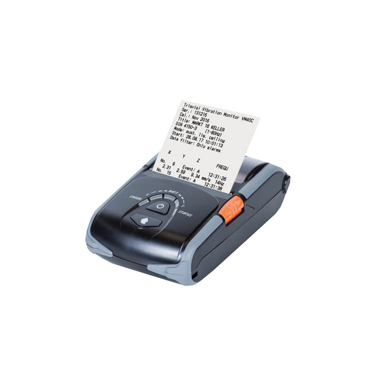

e. Mobile report printer with battery
f. Alarm Beacon with batteries
