Portable Vibration Meter VM25
Gambar Produk

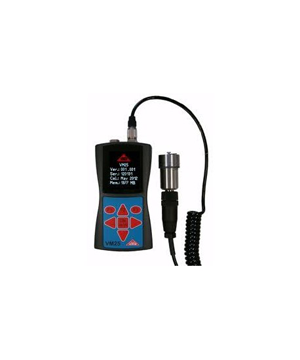

Portable Vibration Meter VM25
Minimum Pembelian
1 Unit
Maximum Pembelian
100 Unit
Pengiriman
60 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Depok - Sukmajaya
Harga
Kontak Kami
Dilihat Sebanyak
34 kali
Update Terakhir
16-01-2023
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Portable Vibration Meter VM25
Nama Alat : Portable Vibration Meter
Type : VM25
Product : MMF (Germany)
Specification :
| 1 | Main Unit | ||
| ▪ | Vibration Accelerometer | : | 0,1 - 240 m/s²; 0,2 Hz - 10 kHz; 3 Hz - 1 kHz, |
| 1 kHz - 10 kHz | |||
| ▪ | Vibration velocity | : | 0,1 - 1000 mm/s; |
| 2 - 300 Hz; 10 - 1000 Hz | |||
| ▪ | Vibration Displacement | : | 0,01 - 60 mm; 2 - 300 Hz |
| ▪ | Bearing Diagnosis Coefficient | : | 1 - 10 kHz; with memory for |
| 1600 rms/peak start values | |||
| ▪ | Accuracy Vibration | : | ± 5 % ± 2 Digits |
| Rotation speed messurement | : | 1 - 9999 rpm; optical | |
| Temperature measurement | : | -40 - 125 °C ± 2 K; infrared | |
| Frequency analysis | : | 125 lines FFT ; acceleration; | |
| 6 frequency ranges 0 to 11712 Hz | |||
| Headphone output | : | 3.5 mm via adapter VM2x-HP; volume control | |
| ▪ | Data Memory | : | 16000 values; USB interface; |
| optional PC software for data and measuring | |||
| point management | |||
| ▪ | Display | : | OLED graphical display; |
| colored; 128 x 160 pixels | |||
| ▪ | Power Supply | : | 3 x LR03 / HR03 / AAA batteries or NiMH |
| accumulators; operating time 8 - 12 h; | |||
| USB supply | |||
| ▪ | Operating Temp.Range | : | -4 .. 140 °F, < 95 % relative humidity, |
| no condensation | |||
| ▪ | Dimension/weight | : | 125 mm x 65 mm x 27 mm; |
| 140 g with batteries and without sensor | |||
| 2 | Accelerometer | ||
| ▪ | Type | : | Piezoelectric shear accelerometer with |
| low-power IEPE output; M12 connector;integral | |||
| magnet, VMID read contact in base | |||
| ▪ | Sensitive | : | 3,5 mV/ms-2 |
| ▪ | Transverse sensitivity | : | < 5 % |
| 3 | Accessories | : | Instrument (Main Unit) |
| : | Vibration sensor with spiral cable | ||
| : | headphone adapter | ||
| : | USB cable | ||
| : | Instruction manual | ||
| : | Plastic case |
