Santa Cruz Megatower Carbon Cc Coil Mountain Bike Frame 2020 (CENTRACYCLES)

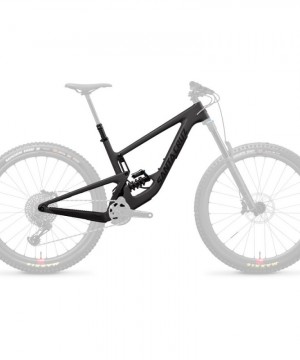

SANTA CRUZ MEGATOWER CARBON CC COIL MOUNTAIN BIKE frame 2020

The Santa Cruz Megatower Carbon CC Coil Mountain Bike frame is the most versatile off-road chassis within the brand’s range. Amalgamating big 29er wheel compatibility with the hardest-hitting suspension, the Megatower infuses confidence into any standard of rider allowing them to attack the longest of descents, the roughest of trails and the most technical of singletrack with total dedication and enthusiasm.

The frame features the highest grade of carbon from Santa Cruz’s stable that promotes a responsive and resilient but smooth ride sensation. A one-piece swingarm, rear suspension unit is then mounted to the main chassis via a VPP lower-link design. This configuration collaborates with the RockShox Coil unit to grant a progressive shock rate, increased bottom-out resistance, unmatched traction and precise rear wheel tracking.

An already comprehensive ride character can then be adjusted by two sets of Flip Chips that are located within the lower link setup and the rear dropouts. These modulate the feel of the rear suspension and rider weight distribution respectively to fine-tune the ride attributes according to the forthcoming sub-genre of trail.

The package is completed in thorough fashion with threaded bottom bracket compatibility for convenience, water bottle mounts inside the main frame for on-the-fly hydration and neat cable routing for enhanced maintenance and aesthetics.

HIGHLIGHTS

The toughest trail frame in the Santa Cruz collection fuses big 29er wheel compatibility and long-travel suspension for the hardest hits on the roughest of rides

Santa Cruz CC carbon full suspension frame with one-piece swing arm and VPP lower-link mounted rear shock design

RockShox Super Deluxe Coil Ultimate rear shock, 160mm travel

Flip Chip technology: User-adjustable features allows the rear suspension and the chainstay length to be adjusted depending on the terrain to be faced

Balanced geometry suitable for a completely versatile trail performance is provided by the 76-degree seat angle and 65-degree head angle

SPECIFICATION

frame     Santa Cruz CC Carbon | One-piece swingarm | VPP lower-link mounted shock design | Flip Chip units in the lower link and rear dropouts

Fork        Compatibility           160-180mm / specced with 44mm offset fork

Rear Shock          RockShox Super Deluxe Coil Ultimate rear shock, 160mm travel

Wheel size compatibility               29”

Tyre clearance   Up to 2.5” (short Flip Chip position) or 2.6” (long Flip Chip position)

Recommended headset               IS41/52 Integrated (SHIS name

Seatpost diameter compatibility               31.6mm

Eye to Eye length             230

Stroke   57.5

Thru-axle             12mm rear x 148 boost

Bottom bracket shell      Threaded BSA 73mm

Max Chainring Size          36t

Chainline Spec   Boost

Brake Types       Post Mount

Shock Mounting Bushing Front  20x8

Shock Mounting Bushing Rear    30x8

Chainguide compatibility              Yes

Changeable rear derailleur hanger           Yes

Refined cable routing for better shifting performance, simpler installation, and no cable rub

Shuttle guard

Downtube protector | Shock guard | Ribbed chainstay protector

Water bottle mounts inside the main frame

Included in delivery        frame including RockShox Super Deluxe Coil Ultimate, 12mm thru-axle and seat clamp

Manufacturer Claimed Weight   2kg, size M
