oscilloscope digital OWON SDS1102,osiloskop Super Economical 100MHz

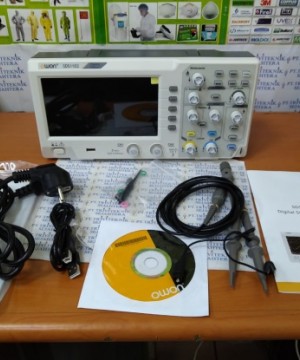

The Owon SDS1102 is a competitively priced oscilloscope with a sample rate of 1 GSa / s and a bandwidth of 100 MHz. Furthermore, with this oscilloscope you have 2 channels at your disposal and it is possible to store 10 K points per measurement. There is a USB connector on the back for exporting measurement results to the PC, and a USB port on the front for exporting to a USB memory stick.
Features
Bandwidth : 100MHz
2-Channels
Sample rate : 1GS/s
Ultra-thin body
7 inch high resolution LCD
SCPI, and LabVIEW supported

Specifications
Model : SDS1102
Bandwidth : 100MHz
Sample Rate : 1GS/s
Horizontal Scale (s/div) : 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel : 2
Display : 7" color LCD, 800 x 480 pixels
Input Coupling : DC, AC , and GND
Vertical Resolution (A/D) : 8 bits (2 channels simultaneously)
Vertical Sensitivity : 5mV/div - 5V/div (at input)
Trigger Type : Edge, Video
Trigger Mode : Auto, Normal, and Single
Waveform Math : ＋, －, x, ÷, invert, FFT
Fuse : 2A, T class, 250V
Dimension (W x H x D) : 301 x 152 x 70 mm

- Bandwidth : 100MHz
- 2-Channel
- Sample rate : 1GS/s
- Horizontal Scale (s/div) : 2ns/div - 100s/div, step by 1 - 2 - 5
- Rise Time : <=3.5ns
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported
