Jual WEG ELECTRIC AC MOTOR PT SARANA GEAR MOTOR FRAME IEC
Gambar Produk
Jual WEG ELECTRIC AC MOTOR PT SARANA GEAR MOTOR FRAME IEC
Minimum Pembelian
1 unit
Lokasi
DKI Jakarta - Jakarta Utara - Tanjung Priok
Harga
Kontak Kami
Dilihat Sebanyak
78 kali
Update Terakhir
04-09-2019
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Jual WEG ELECTRIC AC MOTOR PT SARANA GEAR MOTOR FRAME IEC
Spesifikasi WEG ELECTRIC AC MOTOR PT SARANA GEAR MOTOR frame IEC
PT SARANA GEAR MOTOR

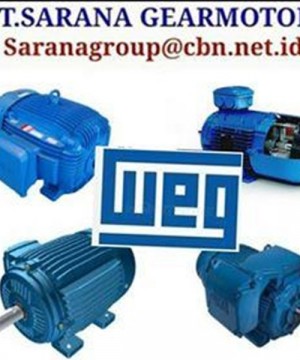

WEG ELECTRIC AC MOTOR
EMAIL : SARANAGROUP@CBN.NET.ID
Three-Phase: W22 IE2 IEC Tru-Metric - TEFC (IP55) Cast Iron frame
Efficiency Level: IE2 according to IEC 60034-30 (Equivalent to NEMA High Efficiency - EPAct)
Data & Drawings
General information
Data & Drawings
CAD Library - 2D / 3D drawings
Download Center
Brochures (20)
Case Study (32)
Quick Guides (2)
Technical Articles (1)
Technical Manuals (3)
Training (1)
Videos (2)
Standard Features
High efficiency - complying with IE2 efficiency levels according to IEC60034-30
Output: 0,12 up to 500kW
Number of Poles: 2, 4, 6 and 8
frames: 63 up to 355M/L
Mounting: F-2 / B3L(E)
Frequency: 60//50 Hz
Voltage: 460//220-240/380-415V with 6 cables for frames 63 to 100L and 460//380-415V with 6 cables for frames 112M to 355M/L
Class “F” insulation (ΔT = 80K)
Continuous duty: S1
Design N
WISE® (WEG Insulation System Evolution) insulation system - Suitable for inverter duty applications*
Ambient temperature: 40 °C, at 1000 m.a.s.l
Squirrel cage rotor / Aluminium die cast
V'Ring seal for frames 63 to 200L and WSeal® for frames 225S/M to 355M/L
Stainless steel nameplate AISI 316
Fan Covers: steel made for frames 63 to 132M/L and cast iron made for frames 160M to 355A/B
Regreasing nipple for frames 160M to 355M/L
Metric threaded cable entries on the terminal box
Color: RAL 5009 - Blue
