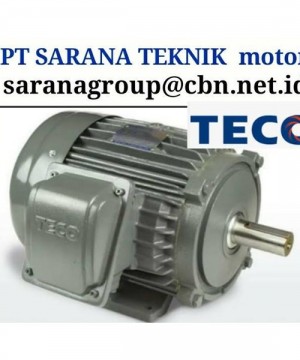

TECO ELECTRIC MOTOR 3 PHASE

EMIAL : SARANAGROUP@CBN.NET.ID

TEL 021-6519582-  FAX  021- 65305868



frame：80~355

Rated power：380V

Rated frequency：50HZ

Speed：3000rpm, 1500rpm, 1000rpm

Power scope：0.75~315KW

Mounting：IMB3 and other mounting type available

Protection class：IP55

Cooling type：IC411

Insulation：F class

Connection Mode: 3kW and below for Y connection; other power for △ connection

Temperature range: -15°C ~40°C

Humidity:  No above 90% while 25℃



Introduction:

      The series (IP55) high efficiency three-phase asynchronous motor is a fully enclosed self-ventilated three-phase asynchronous motor with high energy efficiency limit.

      The installation size and power level accord with IEC standards. The terminal box  is at the top outlet. The efficiency value fully achieve the energy efficiency level 3 (is energy efficiency level 2) requirements in GB18613-2012 《Energy Efficiency Limits and Energy Efficiency Grades of Small and Medium-sized Three-phase Asynchronous Motors》of energy efficiency 3 class (is 2 class energy efficiency ),keeping touch with international IEC60034-30《Single speed three-phase squirrel cage induction motor efficiency classification》of IE2 (IE3).This series of motors adopts cold-rolled silicon steel sheet as magnetically conductive material,the efficiency according with European Eff1 standard .To achieve advanced technology in domestic and abroad . This motor will advertise greatly replacement products.

     The motor has a shaft extension, which can be designed two shaft extension according to customers ,The second shaft extension can also transmit the rated power, but it can only be driven by the coupling.

     It can also supply other power, voltage, frequency, wet heat (TH), protection class and other motors ,According to user needs,.
